Mishimoto BNLT-BR-21M-B30 30 Bumper Light Bar, fits Ford Bronco 2021+ w/Modular Bumper
$461
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

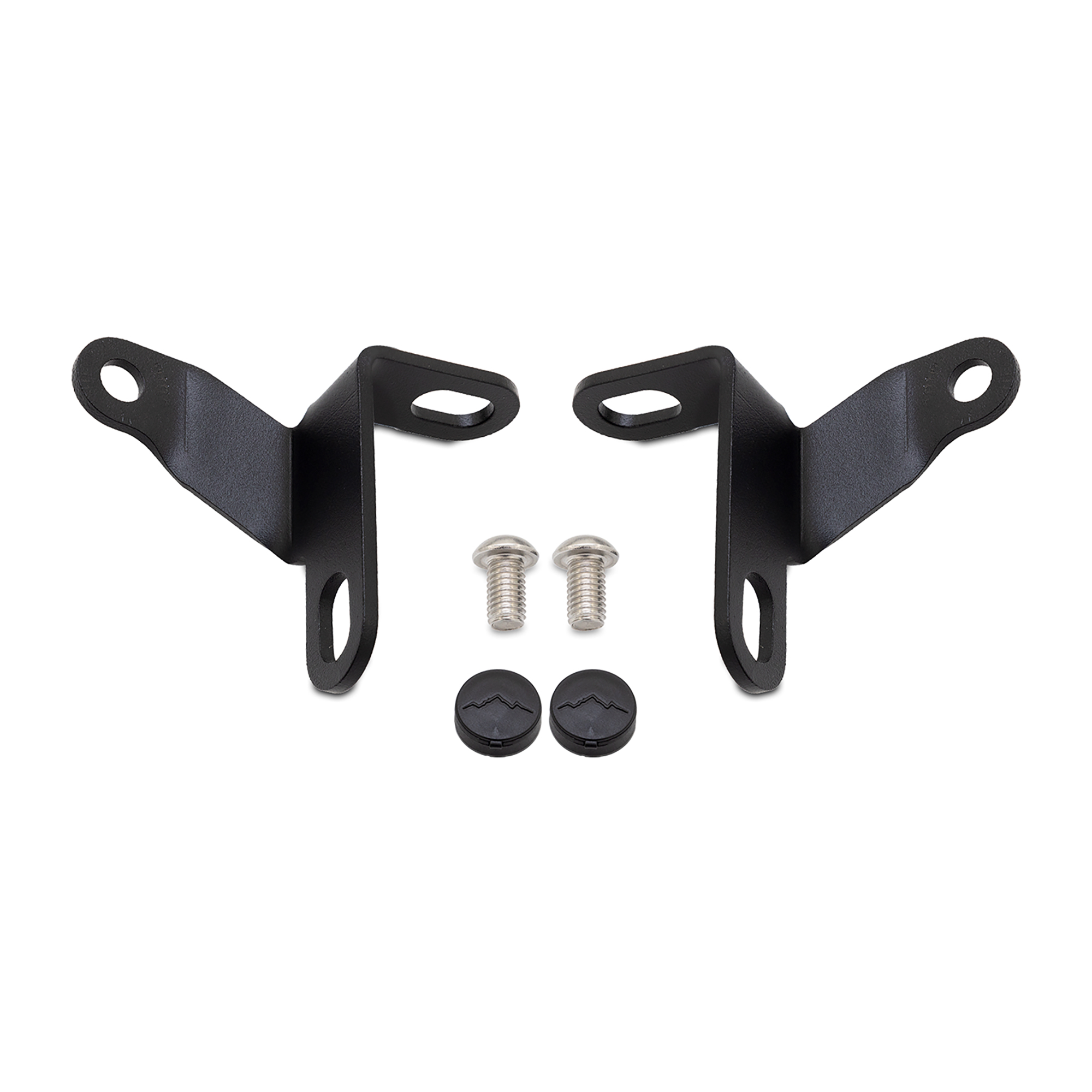

When the trail gets dark or the weather takes a turn for the worse there's nothing more important than being able to see where you're driving. The Borne Off-Road 30 Bumper Light Bar for the 2021+ Ford Bronco with a modular bumper delivers extreme off-road illumination in a direct-fit package. This light bar outputs 13 860 raw lumens with a vivid 5700K daylight color temperature ensuring optimal visibility in any condition. The combo spot and flood beam pattern lights both far and near terrain while the DRL can alternate between off white or amber for added style during the day. Unique black reflectors give the light bar a sleek modern appearance. -- Built to last the light bar features efficient OSRAM(TM) LEDs rated for 50 000 hours of operation and an IP68 rating for protection against water and dust. Black powder-coated stainless steel mounting brackets provide sharp styling and corrosion resistance with adjustable brackets for precise aiming and superior versatility. Black end caps hide hardware for a clean look. The kit includes all necessary hardware a light bar cover to protect against road debris and works seamlessly with the Borne Off-Road Light Wiring Harness. Step-by-step installation videos and guides make it easy to mount the light bar in your driveway or garage without cutting or modifying any components. -- Backed by Borne Off-Road's Lifetime Warranty you can count on this Bronco light bar to illuminate your path when you need it most.
Specifications
| WIDTH | 5.5 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 52 |
| PROP65 | Y |
| WEIGHT | 10 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Water Resistance:Water Proof Connector;Bulb Light Output Color:Natural White;Bulb Material Color:Clear;Bulbs Included:Yes;Lens Color:Clear;Housing Finish:Powder Coated;Lens Length:31 IN;Base Color:Black;Bracket Color:Black;Adjustable Brightness:Yes;Base Material:Stainless Steel;Mounting Hardware Included:Yes;Maximum Voltage:14.5 2H;Wiring Harness Included:Yes;Switch Included:Yes;Housing Color:Black;Minimum Voltage:12 2H;Bracket Material:Stainless Steel;Brightness:13860 LU;Bulb Technology:LED;Light Beam Pattern:Combination;Wattage:210 99;Beam pattern:Combo;DRL:White/Amber;High brightness mode:12v:11.1Amp 24v:5.8Amp Effective lumen:9181 LUX@10m:3060;Install Difficulty:2;LED type:OSRAM 5700K;Low brightness mode:12v:6.4Amp 24v:3.3Amp Effective lumen:5417 LUX@10m:1870;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;Rated Power:165 Watts;Raw lumen:13860;SellingPoint01:Powerful 30” light bar outputs 13 860 raw lumens of light to illuminate the darkest of trails;SellingPoint02:Vivid white daylight 5700K color temperature for optimal visibility;SellingPoint03:DRL can alternate between off white or amber;SellingPoint04:Unique black reflectors give lights a sleek modern look;SellingPoint05:IP68 rating for extreme protection against the elements;SellingPoint06:Black end caps hide hardware for streamlined appearance;SellingPoint07:Black powder-coated stainless steel mounting bracket offers sharp styling and corrosion resistance;SellingPoint08:Equipped with low and high brightness modes;SellingPoint09:Upfitter package includes custom harness for compatibility with factory switches;SellingPoint10:Combo spot and flood beam pattern provides lighting both far and near;SellingPoint11:Adjustable brackets allow for superior versatility;SellingPoint12:Features efficient and long-lasting OSRAM™ LEDs;SellingPoint13:Light bar cover included to protect against road debris;SellingPoint14:Works seamlessly with Borne Off-Road Light Wiring Harness [Hyperlink to BNLT-HAR PDD];SellingPoint15:Borne Off-Road Lifetime Warranty;TechSpec Includes:(1) Bracket set (1) 30" Light bar (1) Universal wiring harness;TechSpec Material:Stainless Steel;TechSpec Note:N/A;TechSpec Overall Height (in):2.1;TechSpec Overall Length (in):31.4;TechSpec Overall Width (in):2.1;TechSpec Quantity Per Pack:1 |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Light Bar |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/BNLT-BR-21M-B30_INSTALLATIONGUIDE_REVA.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
