lighting and electrical

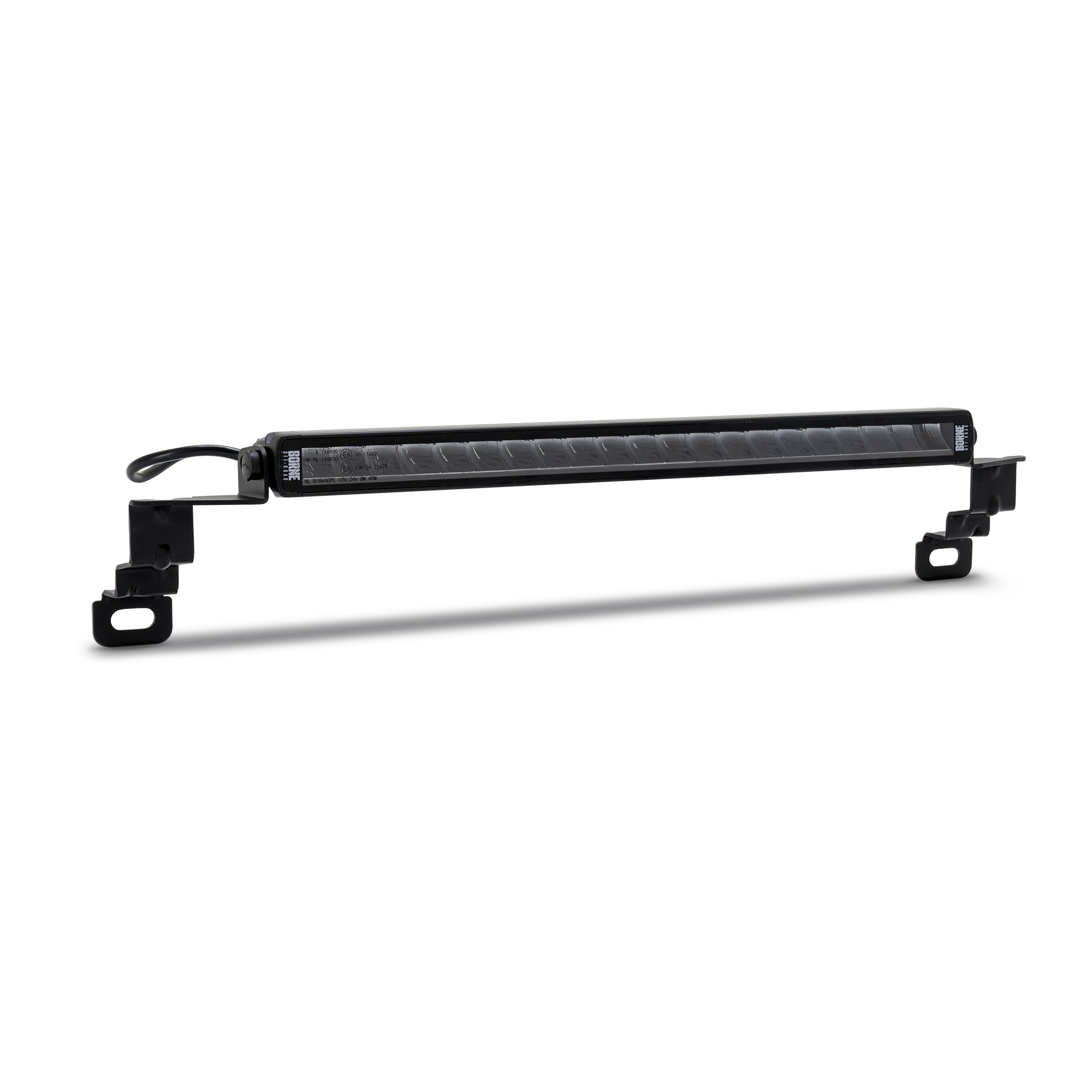

Mishimoto BNLT-BR-21S-B20U 20 Bumper Light Bar, fits Ford Bronco 2021+ w/Standard Bumper and Upfitter
$358
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
When the trail gets dark or the weather takes a turn for the worse there's nothing more important than being able to see where you're driving. The Borne Off-Road 20 Bumper Light Bar for the 2021+ Ford Bronco delivers powerful dependable illumination with a direct-fit bracket engineered to mount seamlessly to your Bronco's bumper. This light bar outputs 8 820 raw lumens and 3 260 LUX at 10 meters with a vivid 5700K daylight color temperature that ensures optimal visibility in any condition. The combo spot and flood beam pattern lights both far and near terrain while the DRL can alternate between off white or amber for added style during the day. -- Built to last this light bar features efficient OSRAM(TM) LEDs rated for 50 000 hours of operation and an IP68 rating for extreme protection against water and dust. The black powder-coated stainless steel mounting bracket provides sharp styling and corrosion resistance. The direct-fit bracket installs on the 2021+ Bronco with all necessary hardware included for a professional complete installation. A sleek snap-on cover protects the light bar from rock chips and road debris. Step-by-step installation videos make it easy to install in your driveway or garage without cutting or modifying any components. -- Backed by Borne Off-Road's Lifetime Warranty you can count on this Bronco light bar to illuminate your path when you need it most.
Specifications
| WIDTH | 5 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 41 |
| PROP65 | Y |
| WEIGHT | 10 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Water Resistance:Water Proof Connector;Bulb Light Output Color:Natural White;Bulb Material Color:Clear;Bulbs Included:Yes;Lens Color:Clear;Housing Finish:Powder Coated;Lens Length:20 IN;Base Color:Black;Bracket Color:Black;Adjustable Brightness:Yes;Base Material:Stainless Steel;Mounting Hardware Included:Yes;Maximum Voltage:14.5 2H;Wiring Harness Included:Yes;Switch Included:No;Housing Color:Black;Minimum Voltage:12 2H;Bracket Material:Stainless Steel;Brightness:8820 LU;Bulb Technology:LED;Light Beam Pattern:Combination;Wattage:210 99;Beam pattern:Combo;DRL:White/Amber;High brightness mode:12v:6.9Amp 24v:3.6Amp Effective lumen:6332 LUX@10m:3260;Install Difficulty:1;LED type:OSRAM 5700K;Low brightness mode:12v:9Amp 24v:2.1Amp Effective lumen:3730 LUX@10m:1960;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;Rated Power:105 Watts;Raw lumen:8820;SellingPoint01:Powerful 20” light bar outputs 8 820 raw lumens of light to illuminate the darkest of trails;SellingPoint02:Vivid white daylight 5700K color temperature for optimal visibility;SellingPoint03:DRL can alternate between off white or amber;SellingPoint04:Unique black reflectors give lights a sleek modern look;SellingPoint05:IP68 rating for extreme protection against the elements;SellingPoint06:Upfitter package includes custom harness for compatibility with factory switches;SellingPoint07:Black end caps hide hardware for streamlined appearance;SellingPoint08:Equipped with low and high brightness modes;SellingPoint09:Black powder-coated stainless steel mounting bracket offers sharp styling and corrosion resistance;SellingPoint10:Includes bracket and all necessary hardware for vehicle mounting;SellingPoint11:Combo spot and flood beam pattern provides lighting both far and near;SellingPoint12:Features efficient and long-lasting OSRAM™ LEDs;SellingPoint13:Light bar cover included to protect against road debris;SellingPoint14:Works seamlessly with Borne Off-Road Light Wiring Harness [Hyperlink to BNLT-HAR PDD];SellingPoint15:Borne Off-Road Lifetime Warranty;TechSpec Includes:(1) Bracket set (1) 20" Light bar (1) Universal wiring harness;TechSpec Material:Stainless Steel;TechSpec Note:N/A;TechSpec Overall Height (in):2.1;TechSpec Overall Length (in):20.6;TechSpec Overall Width (in):2.1;TechSpec Quantity Per Pack:1 |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Light Bar |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/BNLT-BR-21S-B20_INSTALLATIONGUIDE_REVA.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
