wheels and tires

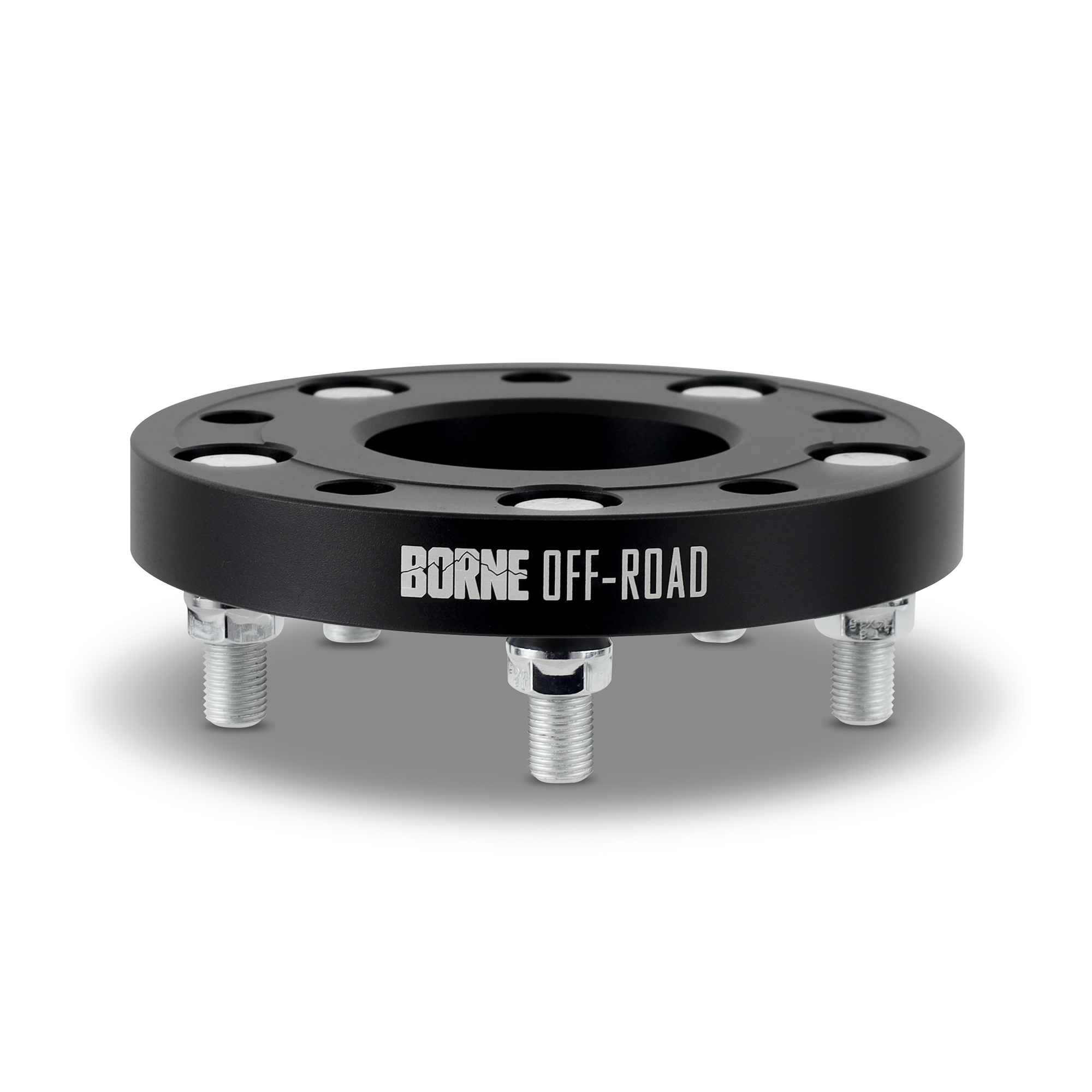

Mishimoto BNWS-015-300BK Wheel Spacers, Black, 5X114.3, 1.2 in, fits Jeep Cherokee 1984-2001
$149
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Building an XJ for the trail means running a wheel-and-tire setup the factory never planned for - wider tires aftermarket wheels with different backspacing and the suspension articulation that comes with a lift. Without the right offset those tires rub control arms brake calipers and steering knuckles. Mishimoto Wheel Spacers add the outward offset that puts the wheel where the build needs it without the failure modes that cheap cast spacers bring to a trail rig.----Forged 6061-T6 aluminum construction resists the impact side-loading and flex cycling that crack cast spacers under rock crawling and washboard trails. A hub-centric 71.6mm centering bore mates to the factory hub so wheel load transfers through the hub instead of riding on the studs - the same way the factory designed it eliminating the vibration and wheel walk that lug-centric spacers introduce. Grade-12.9 steel studs and lug nuts in 1/2-20 thread exceed OEM stud strength adding clearance without trading away clamping force. A durable anodized finish seals against the mud salt and standing-water intrusion that pit and seize unsealed aluminum after a season of overland use.----Sized for the factory 5x114.3 bolt pattern 71.6mm hub bore and 1/2-20 thread the spacers bolt on to the 1984–2001 Jeep Cherokee XJ with no cutting hub modification or adapter work. Backed by the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 8.5 |
|---|---|
| HEIGHT | 9 |
| LENGTH | 8 |
| PROP65 | Y |
| WEIGHT | 7 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| PCDB CATEGORY | Tire and Wheel |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Wheel Spacer Kit |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMWS-BNWS_INSTALLATIONGUIDE.pdf |
| MATERIAL | Aluminum |
| COLOR | Black |
| THICKNESS | 30 MM |
| FINISH | Anodized |
| LUG HOLE QUANTITY | 5 |
| HUB BORE DIAMETER | 71.6 MM |
| WHEEL NUTS INCLUDED | Yes |
| BOLT PATTERN | 5X114.3 mm |
| INSTALL DIFFICULTY | 1 |
| OPTION LABEL | 1.2 in Thick |
| PROP 65 SHORT LABEL | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| PROP 65 Y/N | Y |
| SELLING POINT01 | Push wheels out for clearance under bigger tires - adds outward offset so aftermarket wheels and wider rubber clear the XJ’s control arms brake calipers and steering knuckles without rubbing under suspension articulation. |
| SELLING POINT02 | Forged 6061-T6 aluminum holds up to trail abuse - forged construction resists the impact side-loading and flex cycling that crack cast spacers under rock crawling and washboard trails. |
| SELLING POINT03 | Hub-centric not lug-centric - a 71.6mm centering bore mates to the factory hub so wheel load transfers through the hub instead of riding on the studs eliminating the vibration and wheel walk lug-centric spacers introduce. |
| SELLING POINT04 | Grade-12.9 steel studs and lug nuts included - high-tensile 1/2-20 hardware exceeds OEM stud strength adding the clearance your build needs without trading away clamping force. |
| SELLING POINT05 | Anodized finish seals against trail corrosion a durable anodized coating resists the mud salt and standing-water intrusion that pit and seize unsealed aluminum after a season of overland use. |
| SELLING POINT06 | Confirmed direct fit for 1984–2001 Jeep Cherokee XJ - sized for the factory 5x114.3 bolt pattern 71.6mm hub bore and 1/2-20 thread bolt-on installation no cutting or hub modification. |
| SELLING POINT07 | Own it for life — backed by Mishimoto’s Lifetime Warranty your investment is protected long after install day. |
| SELLING POINT08 | N/A |
| SELLING POINT09 | N/A |
| SELLING POINT10 | N/A |
| SELLING POINT11 | N/A |
| SELLING POINT12 | N/A |
| SELLING POINT13 | N/A |
| SELLING POINT14 | N/A |
| SELLING POINT15 | N/A |
| TECH SPEC APPLICATIONS | 1984-2001 Jeep Cherokee XJ |
| TECH SPEC INCLUDES | (2) Mishimoto Wheel Spacers--(10) 1/2"-20 Lug Nuts--Mishimoto Lifetime Warranty |
| TECH SPEC MATERIAL | 6061 Aluminum |
| TECH SPEC NOTE | Wheel spacers are sold in pairs--Please follow safe installation practices by referencing our Installation Guide--Be sure to take proper vehicle measurements to ensure the thread pattern center bore and thickness will fit your vehicleMay require trimming of stock wheel studs to prevent interference with wheel. |
| TECH SPEC THREAD SIZE | 1/2"-20 |
| VERIFIED FITMENT |
|
