cooling

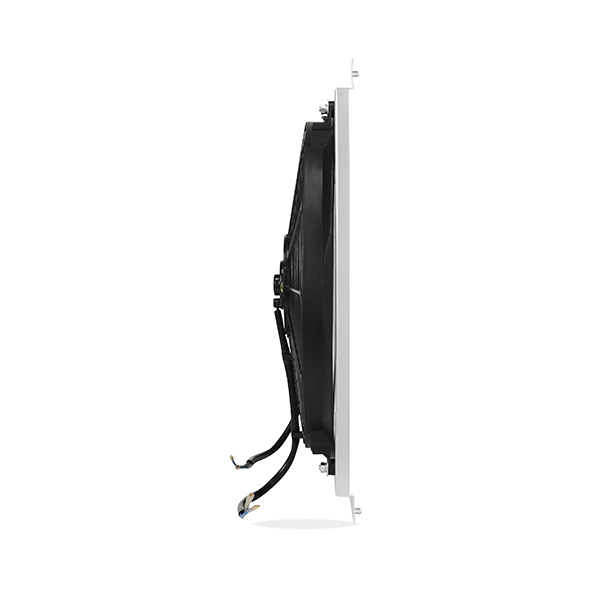

Mishimoto Chevrolet/GM C/K Truck Performance Aluminum Fan Shroud
$349
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Keep your 1967-72 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto's Chevrolet/GM C/K Performance Radiator and includes two 14in high-flow electric fans that produce over 1300 cfm of airflow. Optionally this kit can include a Mishimoto Adjustable Fan Controller Kit which will provide the user with total control over coolant temperatures. As with all our products this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
Specifications
| WIDTH | 22 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 31 |
| PROP65 | Y |
| WEIGHT | 11.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Blade Included:Yes;Control Module Included:No;Maximum CFM:1300 2L;Housing Finish:Aluminum;Blade Quantity:10;Blade Length:7 IN;Blade Color:Black;Fan Clutch Mounted:No;Fan Quantity:2;Shroud Included:Yes;Shroud Material:Aluminum;Shroud Color:Silver;Width:3.69 IN;Mounting Hardware Included:Yes;Height:19.56 IN;Grade Type:Performance;Motor Included:Yes;Hardwired Or Plug-In:Plug-In;Fan 1 Diameter:14 IN;Fan 2 Diameter:14 IN;Blade Material:Plastic;Blade Type:Straight;Control Unit Included:No;Depth:3.69 IN;Electrical Or Mechanical:Electrical;Fan 1 Blade Quantity:10;Fan 2 Blade Quantity:10;Airflow Rate:1300 2L;Color:Silver;Finish:Brushed;Install Difficulty:3;Installation Difficulty:3;Material:Aluminum;OptionLabel:No Controller;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Includes two high-flow 14-in electric fans each providing over 1300 cfm of airflow;SellingPoint02:All-aluminum construction;SellingPoint03:Optional fan controller provides complete control of coolant temperatures at idle;SellingPoint04:Designed to mate exclusively with Mishimoto's Chevrolet/GM C/K Performance Radiator;SellingPoint05:Replaces failure-prone stock mechanical fan;SellingPoint06:No cutting or bending of shroud required;SellingPoint07:Includes all mounting hardware for installation;SellingPoint08:Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:1967-1972 GM C/K Pickup 250 ci (4.1L) L6 283ci (4.6L) V8 292ci (4.8L) L6 307ci (5.0L) V8 327ci (5.4L) V8 350ci (5.7L) V8 396ci (6.5L) V8 402ci (6.6L) V8--1969-1972 Chevrolet Blazer/GMC Jimmy 250ci (4.1L) L6 292 (4.8L) L6 307ci (5.0L) V8 350ci (5.7L) V8--1967-1971 GM G-Series Van 250 ci (4.1L) L6 292ci (4.8L) L6 307ci (5.0L) V8 350ci (5.7L) V8--1968-1979 GM P-Series Van 250 ci (4.1L) L6 292ci (4.8L) L6 307ci (5.0L) V8 350ci (5.7L) V8 402ci (6.6L) V8;TechSpec CFM (Each Fan):1300;TechSpec Chassis Codes:N/A;TechSpec Engine Codes:250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8;TechSpec Height (in):19.56;TechSpec Includes:(1) Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mishimoto Lifetime Warranty;TechSpec Length (in):29.5;TechSpec Note:Electric fans already come attached to the shroud.----Fans may require additional wiring.;TechSpec Weight (lbs):N/A;TechSpec Width (in):3.69;Title:Mishimoto Chevrolet/GM C/K Truck Performance Aluminum Fan Shroud |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Cooling Fan Assembly |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
