Mishimoto Jeep Wrangler JK Baffled Oil Catch Can, 2007-2011
$250
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

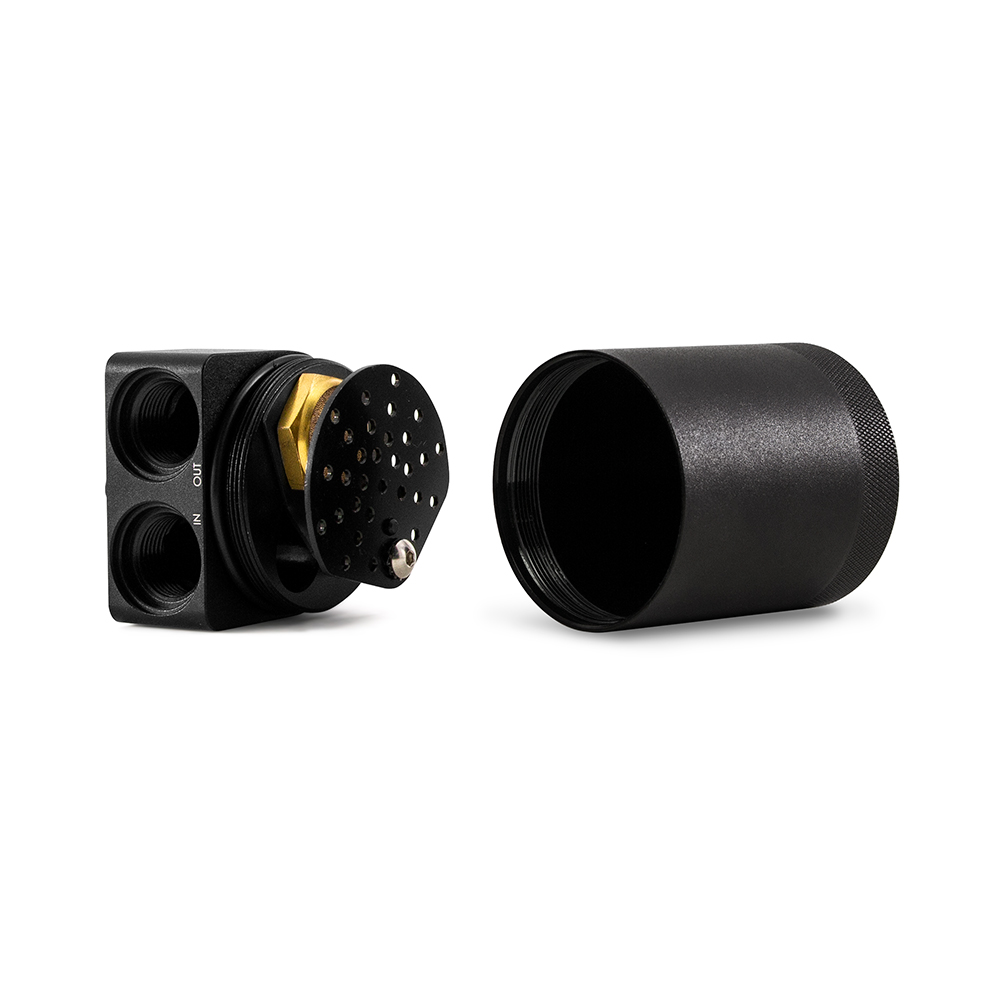

Jeeps are built to go places that don't always involve asphalt. While these machines are made for exciting adventures It's important to pay attention to your engine and make sure that you're able to take your Jeep anywhere anytime for as long as you want. We are here to help with our 2007-2011 Jeep Wrangler 3.8L V6 Baffled Oil Catch Can Kit. Using our standard 3 oz. can this kit will reduce the amount of harmful blow-by oil that coats your intake tracts and cakes your valves with carbon deposits. Internal air diverters slow incoming air for more effective air/oil separation as a 50-micron bronze filter helps filter that air and an internal aluminum baffle prevents any caught content from being recirculated back into the system. With the off-roader in mind our two-piece 2.5mm thick steel bracket was specially engineered to wIt'stand a heavy amount of movement and abuse. The mounting location is secure on the chassis so you won't have to be concerned about your bracket sustaining damage due to chassis movement. Each kit includes black rubber hoses a black powder-coated bracket and is a direct fit for your 2007-2011 3.8L Wrangler. Installation only takes about 1 hour from start to finish and you can feel confident once It's installed knowing It's backed by our Mishimoto Lifetime Warranty!
Specifications
| WIDTH | 8.59 |
|---|---|
| HEIGHT | 8.59 |
| LENGTH | 8.59 |
| PROP65 | Y |
| WEIGHT | 5.2 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Can Material:6061-T6 Billet Aluminum;Can Type:Twist Off;Can Outside Diameter:2.5 IN;Inlet Port Quantity per Can:1;Outlet Port Quantity per Can:1;Can Finish:Anodized;Hose Included:Yes;Color:Black;Outlet Port Inside Diameter:0.6 IN;Inlet Port Inside Diameter:0.6 IN;Drain Plug Included:Yes;Finish:Anodized;Height:4 IN;Maximum Can Capacity:3 FO;Interior Baffle:Yes;Mounting Bracket Included:Yes;Color:Black;Finish:Aluminum;Install Difficulty:2;Installation Difficulty:2;Material:6061 Aluminum;OptionLabel:Black;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2007-2011 Jeep Wrangler JK;SellingPoint02:Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter;SellingPoint03:Helps reduce carbon buildup on intake valves;SellingPoint04:Patented billet 6061 aluminum can sealed with Viton™ O-rings;SellingPoint05:Installs in under 1 hour;SellingPoint06:Robust application-specific bracket mounts the can in a serviceable location;SellingPoint07:Includes pre-molded hoses for simplified installation;SellingPoint08:Defends intake system and essential engine components from oil blow-by;SellingPoint09:CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can;SellingPoint10:Catch can has a 3 oz. capacity for longer serving intervals;SellingPoint11:Internal air diverter increases air turbulence to improve oil separation;SellingPoint12:Helps maintain proper octane levels to reduce potential detonation;SellingPoint13:Filter and can are fully serviceable;SellingPoint14:Patent Nos. US D884 760 US D966 372 S;SellingPoint15:Mishimoto Lifetime Warranty;TechSpec Applications:N/A;TechSpec Catch Can Diameter (in):N/A;TechSpec Chassis Codes:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:N/A;TechSpec Height (in):N/A;TechSpec Includes:N/A;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Material:N/A;TechSpec Note:N/A;TechSpec Outlet:N/A;Title:Mishimoto Jeep Wrangler JK Baffled Oil Catch Can 2007-2011 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Oil Catch Can Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMBCC-WR6-07_INSTALLGUIDE.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
