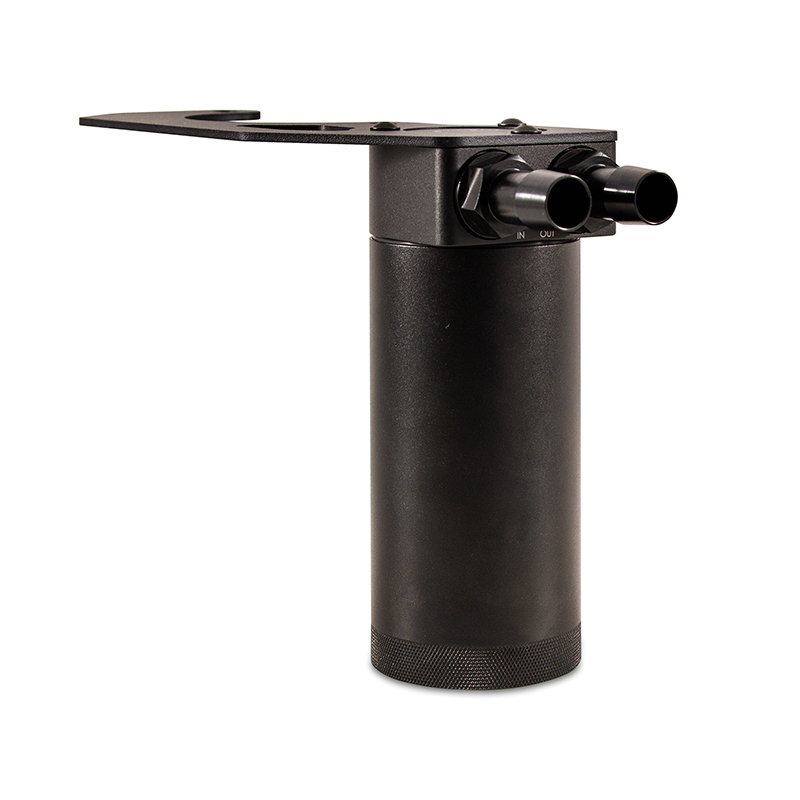

Mishimoto Jeep Wrangler JL 2.0L Baffled Oil Catch Can, 2018-2023
$252
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
The direct-injected and turbocharged 2.0L Hurricane engine found in the 2018-2023 Jeep Wrangler JL is the most advanced engine ever fitted to a Wrangler. But despite all the high-tech features that make the Hurricane great It's still vulnerable to a very low-tech problem: blow-by. The fuel efficiency and increased power of direct injection comes with the threat of carbon buildup. As fuel and air get squeezed in the cylinder some of the mixture leaks past the piston rings and carries oil from the cylinder walls with it. This mixture is known as blow-by. To prevent crankcase pressure from building up the blow-by is then vented into the intake to be reburned. Blow-by becomes an issue with direct-injected engines when it passes the intake valves. Without fuel spraying over the valve There's nothing to wash off the blow-by and heat from combustion eventually causes it to build up as carbon on the back of the intake valves. That carbon buildup prevents valves from closing fully and disrupts airflow. The result is poor running misfires and if left long enough engine damage. The best solution to the problem of blow-by buildup is prevention. Instead of letting blow-by enter the intake the Mishimoto 2018-2023 Jeep Wrangler JL 2.0L direct-fit baffled oil catch can kit diverts it away from the intake valves and into a 7.5 oz catch can. You can then recycle the contents of the catch can with your next oil change. The internal air diverters and baffle of our catch can thoroughly condense oil fuel and water vapor so that the only air flowing through your intake is fresh air. In addition our direct-fit lines and high-flow filter ensure CEL-free running. Like all Mishimoto products this 2018-2023 Jeep Wrangler JL 2.0L catch can kit is protected by our Mishimoto Lifetime Warranty so your JL can also be protected from blow-by for a lifetime.
Specifications
| WIDTH | 6.06 |
|---|---|
| HEIGHT | 6.06 |
| LENGTH | 6.06 |
| PROP65 | Y |
| WEIGHT | 2.91 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Can Material:6061-T6 Billet Aluminum;Can Type:Twist Off;Can Outside Diameter:2.5 IN;Inlet Port Quantity per Can:1;Outlet Port Quantity per Can:1;Can Finish:Anodized;Hose Included:Yes;Color:Black;Outlet Port Inside Diameter:0.6 IN;Inlet Port Inside Diameter:0.6 IN;Drain Plug Included:Yes;Finish:Anodized;Height:6.5 IN;Maximum Can Capacity:7.5 FO;Interior Baffle:Yes;Mounting Bracket Included:Yes;Finish:Powdercoated;Install Difficulty:1;Installation Difficulty:1;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2018-2023 Jeep Wrangler JL 2.0L;SellingPoint02:Installs in under 1 hour;SellingPoint03:Accommodates factory pressure sensor for CEL-free running;SellingPoint04:Durable 3mm thick steel bracket mounts the catch can securely while maintaining short hose runs;SellingPoint05:Helps prevent carbon buildup on intake valves;SellingPoint06:Helps maintain proper octane levels to reduce potential detonation;SellingPoint07:Includes direct-fit hoses with pre-installed fittings for quick and easy installation;SellingPoint08:7.5 oz. capacity for longer service intervals;SellingPoint09:CNC-machined aluminum barbed fittings create a secure connection between lines and can;SellingPoint10:Filter and can are fully serviceable;SellingPoint11:Patent No. US D966 372 S;SellingPoint12:Mishimoto Lifetime Warranty;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Catch Can Diameter (in):N/A;TechSpec Chassis Codes:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:N/A;TechSpec Height (in):N/A;TechSpec Includes:N/A;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Material:N/A;TechSpec Note:Due to the high sensitivity of the CCV pressure sensor this product not intended or recommended for use at altitudes of 4 000 ft. and above.--Mishimoto does not recommend the use of a drain kit with this catch can. This catch can kit is engineered to replicate the pressure conditions of the stock CCV system and any change to the volume or flow of the system may trigger a check engine light. --After installation Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.;TechSpec Outlet:N/A;Title:Mishimoto Jeep Wrangler JL 2.0L Baffled Oil Catch Can 2018-2023 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Oil Catch Can Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
