Mishimoto Mazda Mazdaspeed 3 Baffled Oil Catch Can, PCV-Side, 2007-2013
$230
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

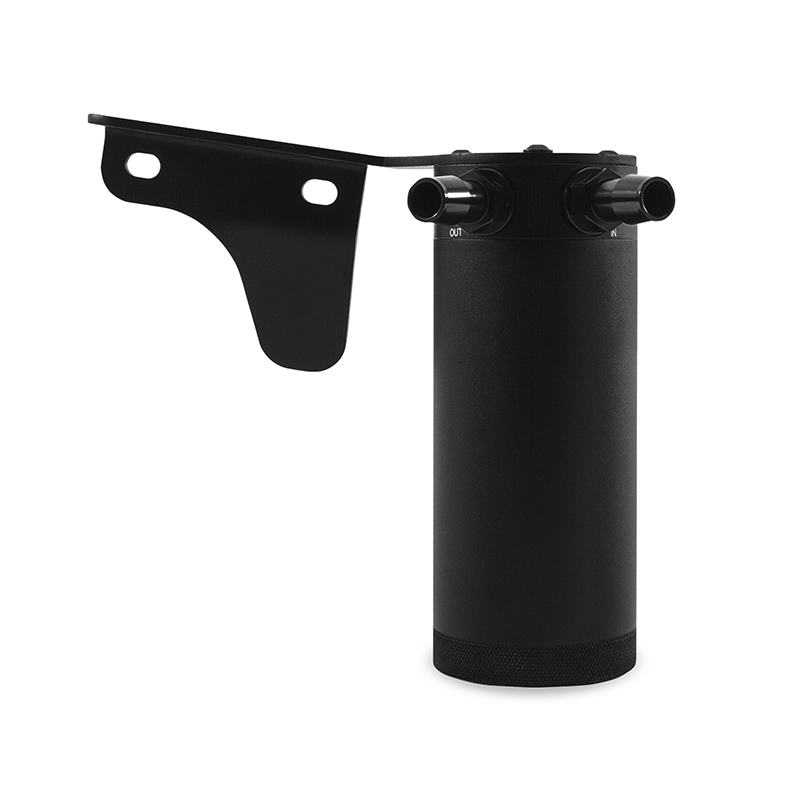

Add a layer of protection to your 2007-2013 Mazdaspeed 3 with the Mishimoto Baffled Oil Catch Can Kit. While the MS3 might have been one of the pioneers in the North American hot-hatch renaissance in the mid-2000s but like the rest of the direct injected turbo charged engines of that era It'suffered from copious carbon build up due to engine blow-by. The 2.3L MZR turbo also has a unique issue with blow-by as It's equipped with a top-mounted intercooler which is prone to heat soak effectively baking in all of the oil and fuel droplets into the heat exchanger. With the Mishimoto Baffled Oil Catch Can Kit those crank-case gases are intercepted before even reaching the intercooler in the 6061-billet aluminum can. We also included our taller 7.5 oz. catch can to compensate for the increased levels of blow-by that the Mazdaspeed 3 experiences in colder weather. Also included in the kit are pre-formed hoses along with all of the necessary mounting hardware to ensure a simple and direct fit to your MS3. As with all of our products the Mazdaspeed 3 Baffled Oil Catch Can Kit is covered under the Mishimoto Lifetime Warranty keeping your 2.3L MZR Turbo blow-by free over the lifetime of the car.
Specifications
| WIDTH | 9.05 |
|---|---|
| HEIGHT | 9.05 |
| LENGTH | 9.05 |
| PROP65 | Y |
| WEIGHT | 3.21 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Can Material:6061-T6 Billet Aluminum;Can Type:Twist Off;Can Outside Diameter:2.5 IN;Inlet Port Quantity per Can:1;Outlet Port Quantity per Can:1;Can Finish:Anodized;Hose Included:Yes;Color:Black;Outlet Port Inside Diameter:0.5 IN;Inlet Port Inside Diameter:0.5 IN;Drain Plug Included:Yes;Finish:Anodized;Height:6.2 IN;Maximum Can Capacity:7.5 FO;Interior Baffle:Yes;Mounting Bracket Included:Yes;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2007-2009 Mazdaspeed 3;SellingPoint02:Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter;SellingPoint03:Installs in under 30 minutes;SellingPoint04:Robust application-specific bracket mounts the can in a serviceable location;SellingPoint05:Catch can has an extra large 7.5 oz. capacity for longer servicing intervals;SellingPoint06:Molded hoses include pre-installed check valve for a true plug-and-play install;SellingPoint07:Defends intake system and essential components from oil blow-by;SellingPoint08:Helps maintain proper octane levels to reduce potential detonation;SellingPoint09:Billet 6061 aluminum sealed can is fully serviceable;SellingPoint10:Internal air diverter increases air turbulence to improve oil separation;SellingPoint11:Patent No. US ZL 202120175368.7;SellingPoint12:Mishimoto Lifetime Warranty;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Catch Can Diameter (in):N/A;TechSpec Chassis Codes:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:N/A;TechSpec Height (in):N/A;TechSpec Includes:N/A;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Material:N/A;TechSpec Note:N/A;TechSpec Outlet:N/A;Title:Mishimoto Mazda Mazdaspeed 3 Baffled Oil Catch Can PCV-Side 2007-2013 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Oil Catch Can Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMBCC-MS3-07INSTALLGUIDE.pdf |
