Mishimoto MMBCC-350Z-07PBE Baffled Oil Catch Can System, fits Nissan 350Z 2007-2009 VQ35HR
$400
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

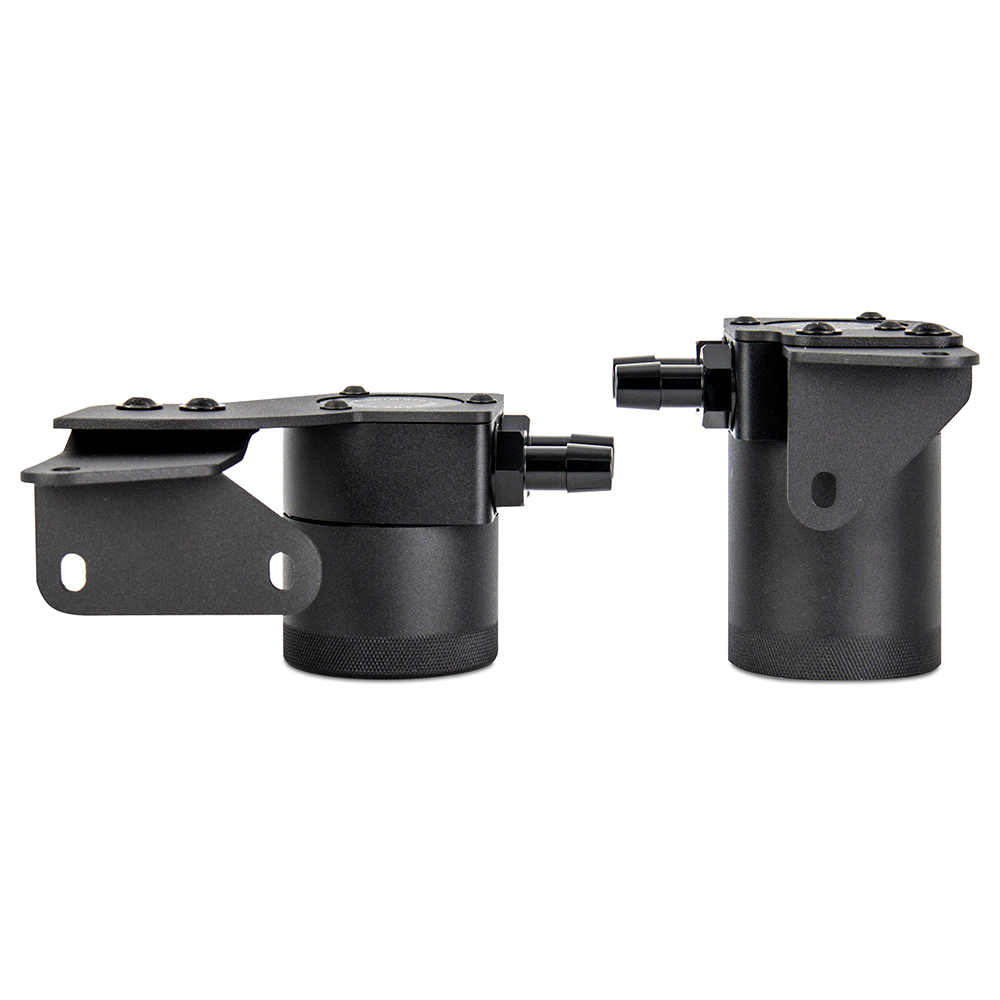

The VQ35HR is the ultimate evolution of the VQ35 series. The HR was built to be driven at the limit but over a decade of daily driving and banging the limiter takes its toll. As the VQ35HR ages it produces more and more blow-by which makes its way back through the intake system and into the cylinders. More blow-by equals a higher chance of detonation and the high-revving high compression HR can't afford more risk. That's why Mishimoto has developed a baffled oil catch can for your VQ35HR-powered 2007-2009 Nissan 350Z or Infiniti.Our complete kit utilizes two 6061-aluminum catch cans that mount in line with the VQ35HR's PCV and CCV systems for protection from idle to wide-open throttle. Blow-by is routed away from the intake and into our catch cans using direct-fit chemical-resistant lines and CNC-machined aluminum fittings. Our cans are suspended in the engine bay by sturdy 3mm-thick steel brackets that can withstand everything from dirt drops to potholes without flinching.Inside the catch cans air diverters and a baffle help condense oil fuel and water while a 50-micron bronze filter further cleans crankcase gases before returning them to your intake. Like all our 350Z products this baffled oil catch can kit for the 2007-2009 350Z VQ35HR is backed by our Mishimoto Lifetime Warranty for a lifetime of protection. So whether you're hitting the track or the street protect your VQ35HR with this Mishimoto baffled oil catch can kit.
Specifications
| WIDTH | 9.5 |
|---|---|
| HEIGHT | 9.5 |
| LENGTH | 9.5 |
| PROP65 | Y |
| WEIGHT | 7.33 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Can Material:6061-T6 Billet Aluminum;Can Type:Twist Off;Can Outside Diameter:2.5 IN;Inlet Port Quantity per Can:1;Outlet Port Quantity per Can:1;Can Finish:Anodized;Hose Included:Yes;Color:Black;Outlet Port Inside Diameter:0.6 IN;Inlet Port Inside Diameter:0.6 IN;Drain Plug Included:Yes;Finish:Anodized;Height:4 IN;Maximum Can Capacity:3 FO;Interior Baffle:Yes;Mounting Bracket Included:Yes;Color:Black;Install Difficulty:2;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2007-2009 Nissan 350Z with VQ35HR;SellingPoint02:Dual-can system captures blow-by from both CCV and PCV systems;SellingPoint03:Sturdy 3mm-thick steel brackets withstand rough roads and track abuse;SellingPoint04:Includes pre-molded stock-style hoses for simplified install;SellingPoint05:Defends intake system and essential engine components from oil blow-by;SellingPoint06:Helps maintain proper octane levels to reduce risk of detonation;SellingPoint07:CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can;SellingPoint08:Includes aluminum T-connector for use with aftermarket intakes;SellingPoint09:Filters and cans are fully serviceable;SellingPoint10:Patent No. US ZL 202120175368.7;SellingPoint11:Mishimoto Lifetime Warranty;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Catch Can Diameter (in):N/A;TechSpec Chassis Codes:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:N/A;TechSpec Height (in):N/A;TechSpec Includes:N/A;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Material:N/A;TechSpec Note:N/A;TechSpec Outlet:N/A |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Oil Catch Can Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
