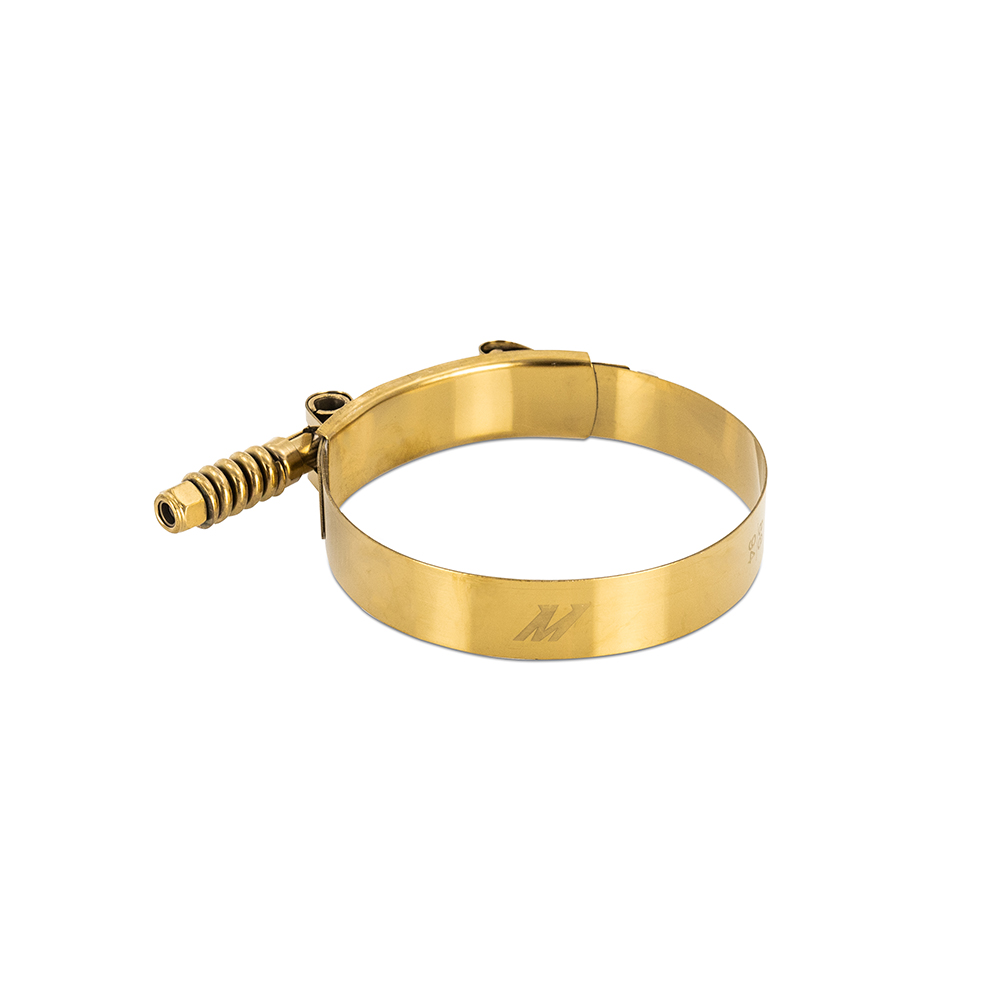

Mishimoto MMCLAMP-35TGD T-Bolt Clamp, Stainless-Steel, Constant Tension, Gold, 3.5in
$16
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.39" - 3.7" (86mm - 94mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps this 3.39" - 3.7" (86mm - 94mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 8.8 |
|---|---|
| HEIGHT | 0.3 |
| LENGTH | 15.1 |
| PROP65 | Y |
| WEIGHT | 0.15 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Material:Stainless Steel;Size:3.5 IN;Maximum Diameter:3.7 IN;Minimum Diameter:3.39 IN;Reusable:Yes;Color:Gold;Band Width:0.75 IN;Finish:Plain;Spring Material:Steel;Type:T-Bolt;Grade Type:Premium;Recommended Torque:27 PPI;SAE Size:60;SAE Type:F;Install Difficulty:1;OptionLabel:Gold;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Securely clamps pipes couplers and hoses with an outer diameter from 3.39- 3.7-in (86mm-94mm);SellingPoint02:Constant tension spring maintains clamping pressure through a wide range of temperatures;SellingPoint03:Included self-locking nut prevents loosening with movement and vibration;SellingPoint04:Stainless steel construction resists corrosion longer than zinc-plated clamps;SellingPoint05:Optional wear-resistant titanium nitride gold coating provides unique engine bay styling;SellingPoint06:Clamps sold individually;SellingPoint07:Mishimoto Lifetime Warranty;SellingPoint08:N/A;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Band Width (in):0.75;TechSpec Clamp Style:Constant Tension T-Bolt Clamp;TechSpec Includes:(1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty;TechSpec Material:Stainless Steel;TechSpec Maximum Clamp Diameter (in):3.7;TechSpec Minimum Clamp Diameter (in):3.39;TechSpec Note:N/A;TechSpec Recommended Tightening Torque:27 in-lbs (3 NM);TechSpec SAE Number:N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Hose Clamp |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
