Mishimoto MMCLAMP-CTWG-105GD Worm Gear Clamp, Constant Tension, Gold, 3.27 in to 4.13in
$11
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

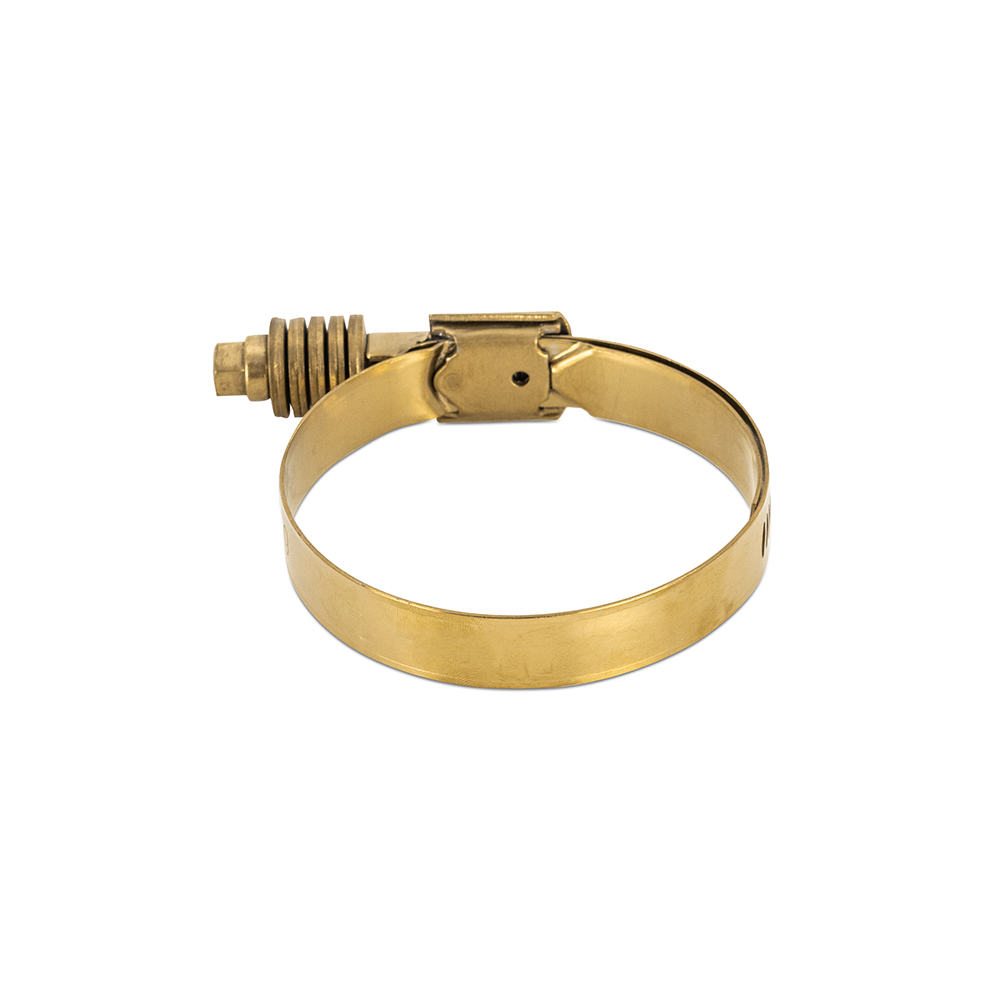

Just like our high-torque worm gear clamps Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp excels however is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products this 3.27" - 4.13" (83mm - 105mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 7.6 |
|---|---|
| HEIGHT | 1.7 |
| LENGTH | 5.2 |
| PROP65 | Y |
| WEIGHT | 0.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Material:Stainless Steel;Size:4.13 IN;Maximum Diameter:4.13 IN;Minimum Diameter:3.27 IN;Reusable:Yes;Color:Gold;Band Width:0.62 IN;Finish:Plain;Spring Material:Steel;Type:Worm Gear;Grade Type:Premium;Recommended Torque:168 PPI;SAE Size:68;SAE Type:F;Install Difficulty:1;OptionLabel:Gold;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Securely clamps pipes couplers and hoses with an outer diameter from 3.27- 4.13-in (83mm-105mm);SellingPoint02:Constant tension spring maintains clamping pressure through a wide range of temperatures;SellingPoint03:Worm gear design for quick and easy tightening;SellingPoint04:Stainless steel construction resists corrosion longer than zinc-plated clamps;SellingPoint05:Optional wear-resistant titanium nitride gold coating provides unique engine bay styling;SellingPoint06:Clamps sold individually;SellingPoint07:Mishimoto Lifetime Warranty;SellingPoint08:N/A;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Band Width (in):0.62;TechSpec Clamp Style:Constant Tension Worm Gear Clamp;TechSpec Includes:(1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty;TechSpec Material:Stainless Steel;TechSpec Maximum Clamp Diameter (in):4.13;TechSpec Minimum Clamp Diameter (in):3.27;TechSpec Note:If using this clamp we recommend purchasing:--MMICP-SS-25U----MMICP-SS-3U;TechSpec Recommended Tightening Torque:14 lb-ft (20 NM);TechSpec SAE Number:412 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Hose Clamp |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
