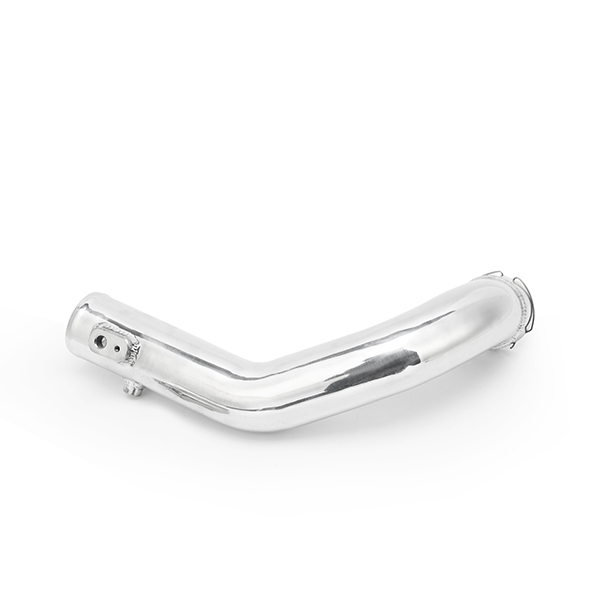

Mishimoto MMICP-CAM4-16CP Intercooler Pipe Kit, Polished, Cold-side, fits Chevrolet Camaro 2.0T 2016-2024
$328
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Expose your 2.0T LTG engine to improved airflow with the Mishimoto Cold-Side Intercooler Pipe Kit for the 2016-2024 Chevrolet Camaro. The stock intercooler pipe is plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber which will deteriorate over time. The Mishimoto intercooler pipe on the other hand is constructed of mandrel-bent aluminum and has a 2.75? diameter to minimize any airflow restrictions. This pipe can handle the power you throw at it when you?re turning up the boost on your LTG. Plastic is a material Mishimoto always strives to replace with our products and the stock cold-side intercooler pipe needed some work. Half of the stock cold-side pipe is constructed of plastic which is prone to cracks and leaks. The Mishimoto cold-side pipe is a single section of mandrel-bent aluminum piping featuring a CNC-machined sensor flange for use of the stock pressure sensor a port for methanol injection or a port for a boost gauge sensor. Mishimoto's cold-side Camaro 2.0T intercooler pipe also includes a durable 90-degee silicone coupler and stainless steel T-bolt clamps to ensure a leak free connection. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto cold-side intercooler pipe is available in either wrinkle black or a polished finish and like all our Camaro 2.0T performance parts includes the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 9.42 |
|---|---|
| HEIGHT | 9.42 |
| LENGTH | 9.42 |
| PROP65 | Y |
| WEIGHT | 2.45 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Clamp Type:T-Bolt;Hot Side Pipe Inside Diameter:0 IN;Cold Side Pipe Inside Diameter:0 IN;Clamps Included:Yes;Finish:Polished;Pipe Material:Aluminum;Pipe Color:Polished;Clamp Quantity:2;Coupler Color:Black;Coupler Material:Silicone;Pipe Quantity:1;Pipe Bend Type:Mandrel;Install Difficulty:3;OptionLabel:Polished;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2016-2024 Chevrolet Camaro 2.0T/2013-2019 Cadillac ATS 2.0T;SellingPoint02:Dyno-proven maximum gains up to 7 whp and 10 wtq on a stock tune;SellingPoint03:31-percent greater internal volume than stock;SellingPoint04:Aluminum intercooler pipe replaces weak stock plastic and rubber pipe;SellingPoint05:Utilizes stock quick-disconnect fittings for easy installation;SellingPoint06:2.75-in mandrel-bent aluminum piping;SellingPoint07:CNC-machined port for stock sensor connection;SellingPoint08:Pre-welded NPT port allows for quick install of aftermarket meth injection or boost gauge;SellingPoint09:Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps;SellingPoint10:Available in polished and wrinkle black;SellingPoint11:Mishimoto Lifetime Warranty;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2016-2024 Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:Alpha;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):N/A;TechSpec Core Type:N/A;TechSpec Engine Codes:LTG;TechSpec Includes:(1) Aluminum Pipe w/ CNC-machined quick-disconnect--(1) Quick-Disconnect Spring Clip--(1) 2.75-in 90-degree Silicone Coupler--(2) 3-in T-bolt Clamps--Mishimoto Lifetime Warranty;TechSpec Inlet (in):N/A;TechSpec Installation Notes:27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).;TechSpec Maximum Recommended Boost Pressure (PSI):N/A;TechSpec Maximum Recommended Horsepower:N/A;TechSpec Note:There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.;TechSpec Outlet (in):N/A;TechSpec Overall Height (in):N/A;TechSpec Overall Length (in):N/A;TechSpec Overall Width (in):N/A;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Pipe Set |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
