Mishimoto MMICP-XD-16WBK Intercooler Pipe Kit, Black, fits Nissan Titan XD 5.0 Cummins 2016-2019
$642
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

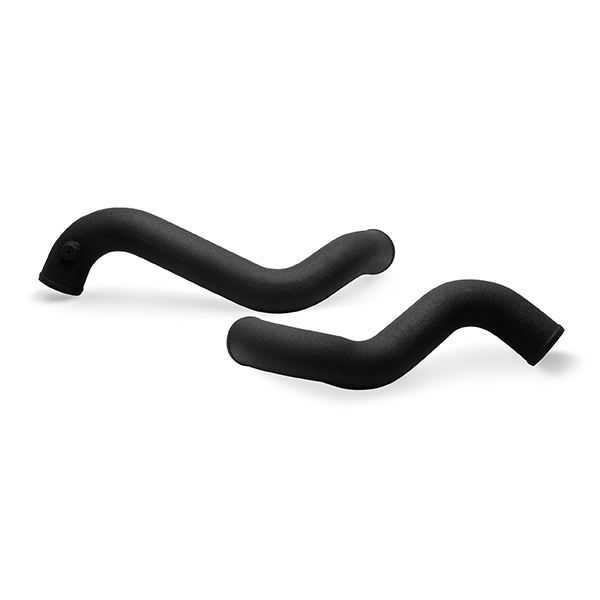

Mishimoto has developed an intercooler pipe and boot kit specifically engineered for use on the 2016-2019 Nissan Titan XD. After investigating the pipe material our engineers identified numerous areas where improvement was necessary. The Mishimoto Titan XD performance intercooler pipes are constructed of mandrel-bent aluminum piping that eliminates the rust buildup present in the stock pipes. Mishimoto DuraCore boots and Constant-Tension T-bolt clamps are also included in this Titan XD performance kit. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone DuraCore provides superior resistance to heat pressure fuel and oil. This effectively increases the life of our boots by preventing leaks and blowouts. The Mishimoto Nissan Titan XD Intercooler Pipe and Boot Kit is designed to work with the stock as well as the Mishimoto Titan XD performance intercooler. This Titan XD performance kit like all of our Titan performance parts includes the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 11.18 |
|---|---|
| HEIGHT | 11.18 |
| LENGTH | 11.18 |
| PROP65 | Y |
| WEIGHT | 8.46 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Clamp Type:T-Bolt;Hot Side Pipe Inside Diameter:0 IN;Cold Side Pipe Inside Diameter:0 IN;Clamps Included:Yes;Finish:Powder Coated;Pipe Material:Aluminum;Pipe Color:Black;Clamp Quantity:8;Coupler Color:Black;Coupler Material:Silicone;Pipe Quantity:2;Pipe Bend Type:Mandrel;Install Difficulty:3;OptionLabel:Black;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2016-2019 Nissan Titan XD;SellingPoint02:Mandrel-bent polished aluminum pipe eliminates restrictive bends resists corrosion;SellingPoint03:No additional tuning required;SellingPoint04:DuraCore technology provides superior resistance to heat pressure fuel and oil;SellingPoint05:Available in polished or wrinkle black;SellingPoint06:Includes Mishimoto Constant-Tension T-bolt Clamps;SellingPoint07:Mishimoto Lifetime Warranty;SellingPoint08:N/A;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2016-2019 Nissan Titan XD 5.0 Cummins;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):N/A;TechSpec Core Type:N/A;TechSpec Engine Codes:N/A;TechSpec Includes:(2) Aluminum Intercooler Pipes--(4) Silicone Boots with DuraCore Technology--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty;TechSpec Inlet (in):N/A;TechSpec Installation Notes:27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).;TechSpec Maximum Recommended Boost Pressure (PSI):N/A;TechSpec Maximum Recommended Horsepower:N/A;TechSpec Note:N/A;TechSpec Outlet (in):N/A;TechSpec Overall Height (in):N/A;TechSpec Overall Length (in):N/A;TechSpec Overall Width (in):N/A;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Pipe Set |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
