Mishimoto MMINT-BR23-21HKSLP Intercooler Kit, Silver/Polished, High-Mount, fits Ford Bronco 2.3L 2021-2024
$1,800
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

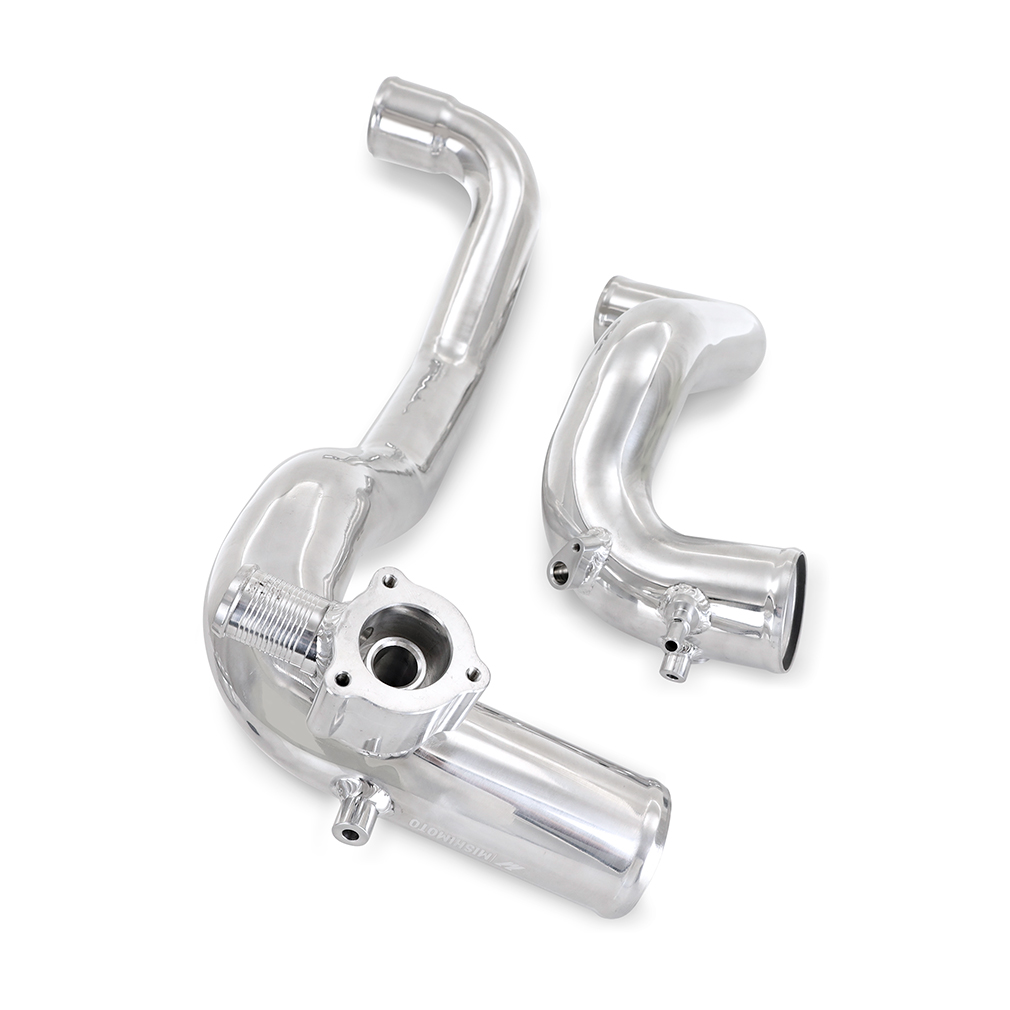

Unleash your 2021-2024 2.3L EcoBoost Ford Bronco's full potential with the Mishimoto High-Mount Intercooler Kit! Designed to allow your Bronco to breathe the coldest densest air possible this high-mount intercooler kit is comprised of our high-mount intercooler and performance intercooler pipe kit.----We've relocated the intercooler to the upper grille to allow better airflow at all times even with winches light bars or larger bumpers installed. This location also helps protect the intercooler from obstacles on the trail. Our intercooler utilizes a 3.1 inch-thick bar-and-plate core that's precision TIG welded to cast aluminum end tanks for superior durability and heat soak resistance. The weak plastic stock piping is replaced with high-flowing durable aluminum piping and silicone boots with DuraCore technology. The larger volume of our pipes allows your 2.3L EcoBoost to breathe freely and make the most of its turbo while the all-aluminum construction and DuraCore boots provide unmatched durability.----Durability is always a good thing but it's even better when it's paired with performance. The high-mount intercooler boasts a 49-percent greater core volume and 93-percent greater external fin surface area than stock which results in 21-degree cooler outlet temps over the stock intercooler. We also saw exceptional improvement in our trail simulation heat-soak testing where after 6 back-to-back dyno runs we still saw outlet temperatures 20-degrees cooler than stock.----This intercooler kit is available with a stealth black or sleek silver intercooler and micro-wrinkle black powder coated or polished pipes to match any style. Functionality of adaptive cruise control is retained utilizing a relocation bracket and 360-degrees cameras are unaffected. As with all our products the Mishimoto 2021-2024 Ford Bronco 2.3L High-Mount Intercooler kit is backed by our signature Mishimoto Lifetime Warranty and comes with all necessary hardware for easy installation.
Specifications
| WIDTH | 27.27 |
|---|---|
| HEIGHT | 27.27 |
| LENGTH | 27.27 |
| PROP65 | Y |
| WEIGHT | 59.22 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | End Tank Material:Aluminum;Pipe Finish:Powder Coated;Hot Side Pipe Inside Diameter:3 IN;Cold Side Pipe Inside Diameter:3 IN;Intercooler Type:Air-to-Air;Core Construction:Bar-and-Plate;End Tank Construction:Cast;Core Height:8.8 IN;Core Thickness:3.15 IN;Core Material:Aluminum;Universal Or Specific Fit:Specific;Grade Type:Performance;Pipe Material:Aluminum;Pipe Color:Polished;Core Length:21.26 IN;Inlet Diameter:3 IN;Coupler Color:Black;Coupler Material:Silicone;Hose Clamps Included:Yes;Outlet Diameter:3 IN;Maximum Boost Pressure:0 PS;Core Color:Silver;Maximum Horsepower:0 HJ;Install Difficulty:N/A;OptionLabel:Silver Core Polished Pipes;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost;SellingPoint02:Relocates intercooler for better airflow with winches lights and other off-road accessories;SellingPoint03:Dyno-proven max gains of 4.5 hp and 10.8 lb-ft torque;SellingPoint04:Includes adaptive cruise control relocation mount and does not interfere with 360-degree cameras;SellingPoint05:21-degree reduction in outlet temperature over stock intercooler;SellingPoint06:Allows for improved clearance entry and exit angle and keeps your intercooler protected from obstacles on the trail;SellingPoint07:49-percent greater core volume for high-efficiency cooling;SellingPoint08:Durable bar-and-plate core for superior durability and performance;SellingPoint09:Optimal core design for maximum cooling efficiency with minimal pressure drop;SellingPoint10:Cast aluminum end tanks for increased pressure tolerance and reliability;SellingPoint11:1/8 NPT port on cold-side pipe for methanol injection or additional sensors;SellingPoint12:Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat pressure fuel and oil;SellingPoint13:Available with a stealth black or sleek silver intercooler and micro-wrinkle black powder coated or polished pipes to match any style;SellingPoint14:Patent Pending;SellingPoint15:Mishimoto Lifetime Warranty;TechSpec Applications:2021-2024 Ford Bronco 2.3L EcoBoost;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Height (in):8.8;TechSpec Core Length (in):21.26;TechSpec Core Thickness (in):3.15;TechSpec Core Type:Bar-And-Plate;TechSpec Engine Codes:2.3L EcoBoost;TechSpec Includes:(1) Mishimoto High Mount Intercooler--(2) Aluminum Intercooler Pipes--(1) Adaptive Cruise Control Bracket--(4) Duracore Intercooler Pipe Couplers--(8) Constant-Tension Worm Gear Clamps--High-Mount Intecooler Ducting--Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Inlet (in):3;TechSpec Installation Notes:N/A;TechSpec Maximum Recommended Boost Pressure (PSI):N/A;TechSpec Maximum Recommended Horsepower:N/A;TechSpec Note:Please note: Adaptive cruise control may function to a lesser degree compared to stock intercooler setup.----Does not fit Raptor Bronco with 3.0L EcoBoost;TechSpec Outlet (in):3;TechSpec Overall Height (in):18.6;TechSpec Overall Length (in):35.82;TechSpec Overall Width (in):6.15;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
