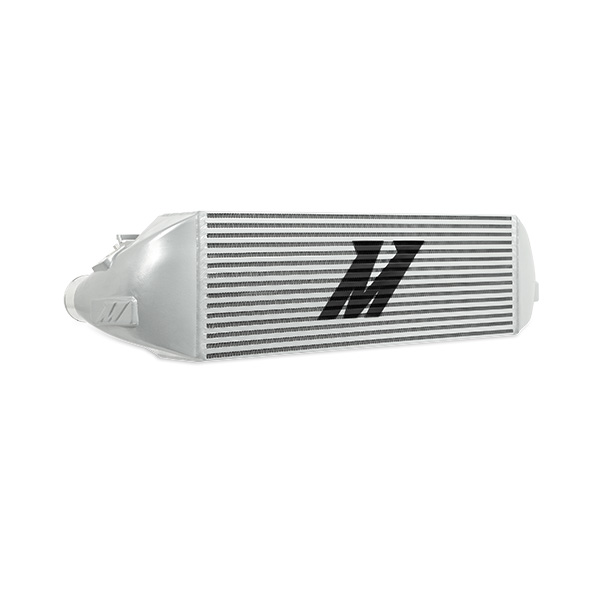

Mishimoto MMINT-FOST-13KBSL Intercooler Kit, Silver/Black, fits Ford Focus ST 2013-2018
$1,167
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
It's time to make your cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013-2018 Ford Focus ST. Ford released their 2.0T EcoBoost powered Focus boasting the perfect combination of performance and practicality however the intercooling system left something to be desired. While the piping did feature sections of aluminum the restrictive diameter not to mention the turbo muffler put a damper on the Focus ST?s performance potential. We've replaced the hot-side pipe with mandrel-bent aluminum both ditching the muffler and also opening up the diameter to allow a 26-percent better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone ensuring a long lasting connection on the hot-side but also a soother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe kit grants a 21-percent increase in flow to and from the intercooler. The piping isn?t the only part of this kit that increases flow the bar-and-plate construction opens up air channels within the core allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all aluminum construction also aids in heat dissipation warding off the dreaded heat-soak under demanding driving conditions and delivering properly cooled air through the ST?s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP. The Mishimoto Performance Intercooler Kit for your 2013-2018 is available in silver black or gold with an option of wrinkle black or polished piping. As always this intercooler kit is covered under the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 19.87 |
|---|---|
| HEIGHT | 19.87 |
| LENGTH | 19.87 |
| PROP65 | Y |
| WEIGHT | 30.08 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | End Tank Material:Aluminum;Pipe Finish:Powder Coated;Hot Side Pipe Inside Diameter:2.5 IN;Cold Side Pipe Inside Diameter:2.5 IN;Intercooler Type:Air-to-Air;Core Construction:Bar-and-Plate;End Tank Construction:Cast;Core Height:0 IN;Core Thickness:0 IN;Core Material:Aluminum;Universal Or Specific Fit:Specific;Grade Type:Performance;Pipe Material:Aluminum;Pipe Color:Black;Core Length:0 IN;Inlet Diameter:2.5 IN;Coupler Color:Black;Coupler Material:Silicone;Hose Clamps Included:Yes;Outlet Diameter:2.5 IN;Maximum Boost Pressure:0 PS;Core Color:Silver;Maximum Horsepower:0 HJ;CARB EO Number:D-759-6;Install Difficulty:4;OptionLabel:Ford Focus ST Intercooler Kit 2013+ Silver Cooler Black Pipes;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2013-2018 Ford Focus ST;SellingPoint02:4.3-in thick intercooler design optimized for maximum flow;SellingPoint03:8 HP and 10 lb.-ft. of torque gains when combined with other Mishimoto Focus ST parts;SellingPoint04:Optimal core design for maximum cooling efficiency with minimal pressure drop;SellingPoint05:CNC-machined ribbed inlet and outlet for secure coupler connections;SellingPoint06:Increases core size by 128-percent and fin surface area by 32-percent;SellingPoint07:10-percent increase in volume and 40-percent increase in flow over stock cold-side pipe;SellingPoint08:14-percent increase in volume and 26-percent greater flow than stock hot-side pipe;SellingPoint09:Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator;SellingPoint10:Provision for both US and Euro MAP sensor;SellingPoint11:No modification to front bumper and retains stock fog lights;SellingPoint12:Pipes available in polished or wrinkle black powder-coating;SellingPoint13:Mishimoto Lifetime Warranty;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:Ford Focus ST 2013-2018;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:C346;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):N/A;TechSpec Core Type:Bar-and-Plate;TechSpec Engine Codes:N/A;TechSpec Includes:(1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone couplers--(1) Silicone Pipe--(6) High torque Worm Gear clamps--Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.5;TechSpec Installation Notes:22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).;TechSpec Maximum Recommended Boost Pressure (PSI):N/A;TechSpec Maximum Recommended Horsepower:N/A;TechSpec Note:N/A;TechSpec Outlet (in):2.5;TechSpec Overall Height (in):8.3;TechSpec Overall Length (in):35.7;TechSpec Overall Width (in):7.25;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):30 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
