Mishimoto MMINT-MUS4-24KBKP Intercooler Kit, Black/Polished, fits Ford Mustang EcoBoost 2024+
$1,316
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

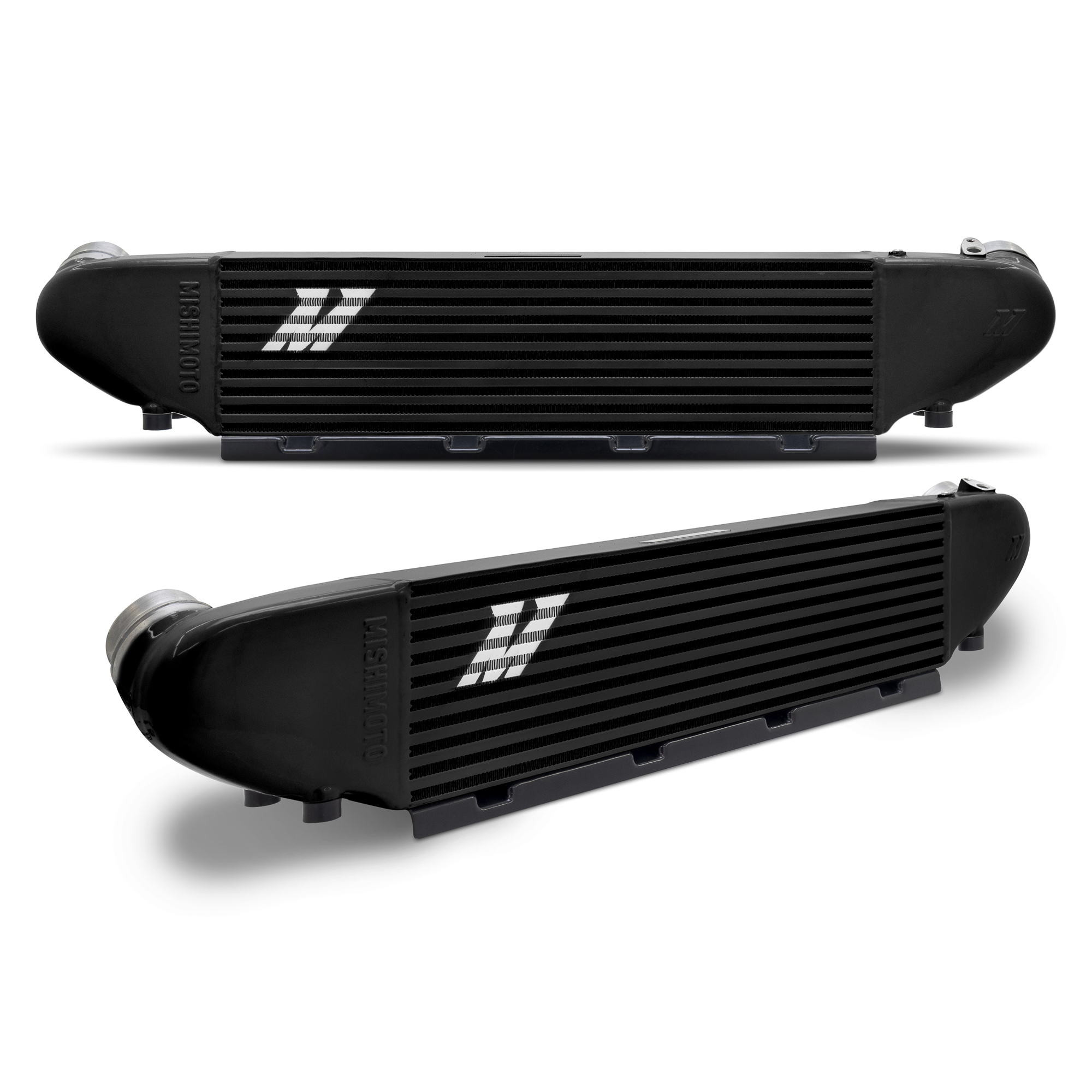

Upgrade your 2024+ Ford Mustang EcoBoost with the Mishimoto Intercooler and Pipe Kit a complete system designed to maximize airflow lower intake temps and boost performance. This kit combines a direct-fit bar-and-plate intercooler with high-flow hot-side and cold-side aluminum pipes delivering safe tune-free power gains. -- The intercooler features cast aluminum end tanks and fits in the stock location with a 60% increase in core volume. Oversized 63mm inlets/outlets improve flow while a diverter plate ensures even air distribution. Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce NVH. Four EPDM rubber sandwich mounts isolate vibration and add rigidity. Gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning and a pre-drilled NPT port allows for auxiliary sensors or data logging. -- The included intercooler pipes are made from durable aluminum with cast connections for strength and precise fitment. A cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install. CNC-machined quick-disconnect fittings DuraCore(TM) silicone couplers high-torque worm-gear clamps and an ID-matched transition coupler ensure secure high-flow connections. Extra clearance also allows compatibility with the Mishimoto performance radiator. -- Available in polished or wrinkle black finishes the Mishimoto Intercooler and Pipe Kit provides improved airflow reduced intake temps better underhood aesthetics and long-term durability. Installation is straightforward with all hardware included and every kit is backed by the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 21.47 |
|---|---|
| HEIGHT | 21.47 |
| LENGTH | 21.47 |
| PROP65 | Y |
| WEIGHT | 35.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | End Tank Material:Aluminum;Pipe Finish:Powder Coated;Hot Side Pipe Inside Diameter:2.44 IN;Cold Side Pipe Inside Diameter:2.44 IN;Intercooler Type:Air-to-Air;Core Construction:Bar-and-Plate;End Tank Construction:Cast;Core Height:6.08 IN;Core Thickness:3.54 IN;Core Material:Aluminum;Universal Or Specific Fit:Specific;Grade Type:Performance;Pipe Material:Aluminum;Pipe Color:Polished;Core Length:22.83 IN;Inlet Diameter:2.44 IN;Coupler Color:Black;Coupler Material:Silicone;Hose Clamps Included:Yes;Outlet Diameter:2.44 IN;Maximum Boost Pressure:50 PS;Core Color:Black;Maximum Horsepower:526 HJ;Install Difficulty:3;OptionLabel:Black Cooler--Polished Pipes;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune;SellingPoint02:Reduces charged-air temperatures at outlet by up to 60°F;SellingPoint03:Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp;SellingPoint04:Maximized core in stock location below the crash bar to maintain even airflow and prevent heat pockets;SellingPoint05:Designed to mount to subframe with four rubber sandwich mounts for rigidity and vibration isolation;SellingPoint06:DuraCore™ silicone couplers designed to withstand high temperature and boost pressures;SellingPoint07:Includes CNC quick-disconnect fittings and high-torque worm-gear clamps for secure fitment;SellingPoint08:Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment;SellingPoint09:ID-matched transition coupler on cold side for smooth airflow into intercooler;SellingPoint10:Diverter plate in hot side end tank offers even airflow distribution;SellingPoint11:Foam strips and custom bottom air deflector maximize airflow and reduce noise and vibration levels;SellingPoint12:Intercooler available in silver or black for sharp aesthetics behind the grille;SellingPoint13:Pipes available in polished or wrinkle black finish for a clean underhood look;SellingPoint14:Mishimoto Lifetime Warranty;SellingPoint15:N/A;TechSpec Applications:2024+ Ford Mustang EcoBoost;TechSpec Centerline Radius:3.15;TechSpec Chassis Codes:S650;TechSpec Core Height (in):6.08;TechSpec Core Length (in):22.83;TechSpec Core Thickness (in):3.54;TechSpec Core Type:Bar-and-Plate;TechSpec Engine Codes:2.3L EcoBoost I4;TechSpec Includes:(1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--(2) Hot Side Pipes--(1) Cold Side Pipe--(2) Duracore Couplers--(4) Spring Clamps--(2) O-Rings--(3) Buttonhead Locking Bolts--(1) Tree Clip Zip Tie--Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.44;TechSpec Installation Notes:N/A;TechSpec Maximum Recommended Boost Pressure (PSI):50;TechSpec Maximum Recommended Horsepower:526;TechSpec Note:N/A;TechSpec Outlet (in):2.44;TechSpec Overall Height (in):6.5;TechSpec Overall Length (in):35.7;TechSpec Overall Width (in):5.3;TechSpec Pipe Diameter:2.75;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):17 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMINT-MUS4-24_Install-Guide_REVA.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
