Mishimoto MMINT-ULBK Universal Intercooler L-Line, Black
$700
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

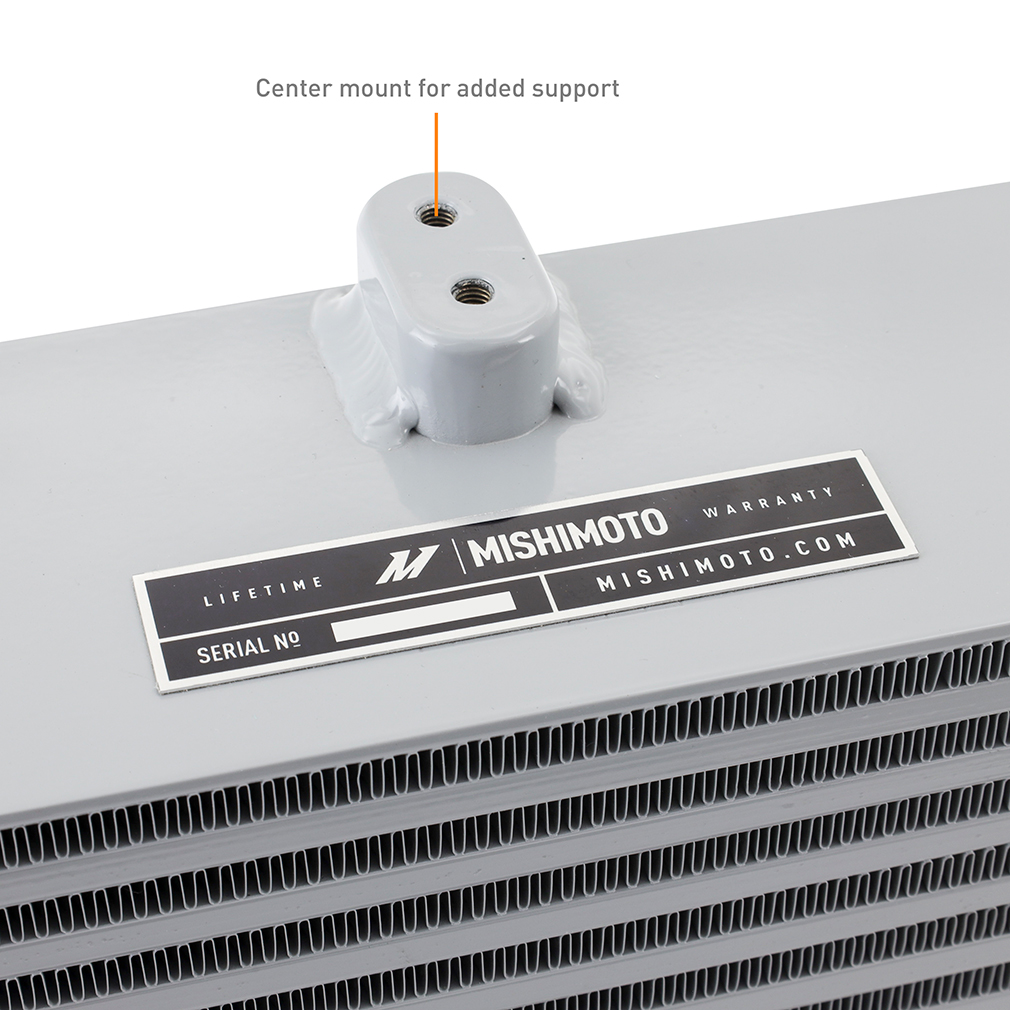

Big power requires big cooling and Mishimoto is here to deliver. This Mishimoto universal L-line intercooler features a massive 4"-thick core that's capable of supporting up to 1 000 horsepower. The one-piece cast-aluminum end tanks are far stronger than cut-and-weld tanks making them capable of holding up to 60 PSI of boost. Large 2.4" inlet and outlets ensure ample flow while the 26.57"x12.4" bar-and-plate core effectively transfers heat out of your charge air. Unlike many stock plastic end tank intercoolers our end tanks are precision TIG-welded to the core for durability and reliability pass after pass.----This universal L-line intercooler features three integrated mounts with pre-threaded M6 holes to make fabricating mounts and installing easy. The center support mount also ensure the intercooler is properly supported for aggressive driving. An integrated harness/sensor mount makes keeping your wires safe and tidy easy. This intercooler is available in a durable sleek silver or stealth black powder-coated finish. Like all our performance products this universal L-line bar-and-plate intercooler is backed by our Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 8.5 |
|---|---|
| HEIGHT | 16 |
| LENGTH | 43.75 |
| PROP65 | Y |
| WEIGHT | 22.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Inlet Outside Diameter:2.4 IN;Outlet Outside Diameter:2.4 IN;Length:40.22 IN;Width:6 IN;Type:Bar-and-Plate;Core Height:12.14 IN;Core Thickness:3.93 IN;Core Material:Aluminum;Height:12.89 IN;Universal Or Specific Fit:Specific;Grade Type:Performance;Inlet Fitting Gender:Male;Outlet Fitting Gender:Male;Core Length:26.57 IN;Inlet Tank Material:Aluminum;Core Color:Black;Install Difficulty:3;OptionLabel:Black;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Durable bar-and-plate core provides superior heat transfer and effectively reduce charge air temps;SellingPoint02:Massive 4"-thick core and 2.4" inlet/outlet support up to 1 000 horsepower;SellingPoint03:Robust one-piece cast aluminum end tanks withstand up to 60 PSI of boost pressure;SellingPoint04:Three integrated mounting points with pre-threaded M6 holes make mounting easy;SellingPoint05:Included bracket for harnesses or sensors keeps wiring safe and secure;SellingPoint06:Precision TIG-welded joints won't crack under pressure;SellingPoint07:Available in durable stealth black or sleek silver powder-coated finish;SellingPoint08:Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Height (in):12.14;TechSpec Core Length (in):26.57;TechSpec Core Thickness (in):3.93;TechSpec Core Type:Bar-and-Plate;TechSpec Engine Codes:N/A;TechSpec Includes:(1) Universal L-Line Intercooler-- Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.4;TechSpec Installation Notes:N/A;TechSpec Maximum Recommended Boost Pressure (PSI):60;TechSpec Maximum Recommended Horsepower:1000;TechSpec Note:N/A;TechSpec Outlet (in):2.4;TechSpec Overall Height (in):12.89;TechSpec Overall Length (in):40.22;TechSpec Overall Width (in):6;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
