Mishimoto MMINT-WRX-22BKRD Front Mount Intercooler Kit, fits Subaru WRX 2022+
$1,601
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

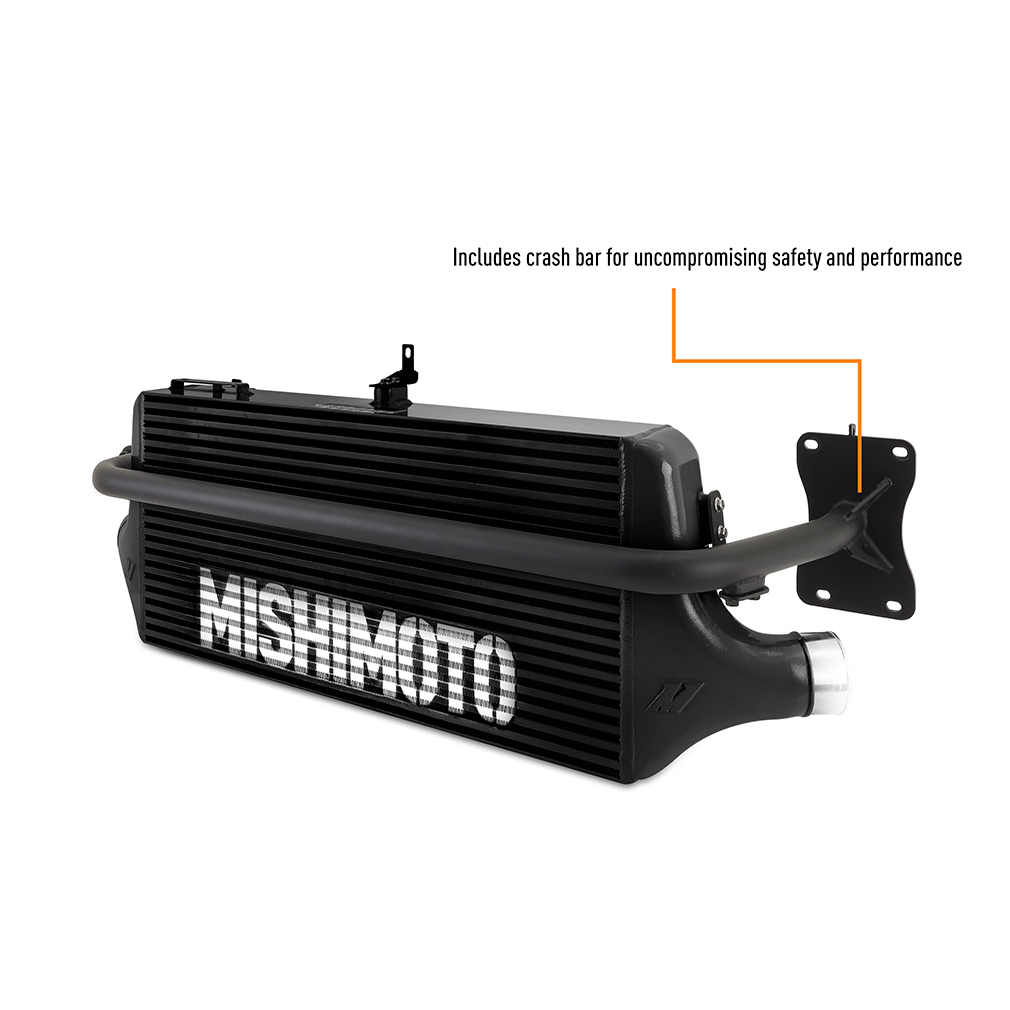

For 2022+ WRX owners looking to take the next step in performance look no further than Mishimoto's Performance Front-Mount Intercooler Kit. Whether you're building your WRX for the track dragstrip or the road upgrading your WRX's intercooler is an absolute must. Designed with a massive core CFD-optimized cast end tanks and high-flow pipes this intercooler offers gains of 12 hp and 11.8 lb-ft torque.----The front mounting location of this kit places the intercooler in the lower bumper grille for maximum airflow through the core making this system ideal for high-performance builds. In dyno testing our intercooler was able to bring outlet temperatures to within 10-degrees of ambient air temp ensuring safe power run after run even on the stock tune. CFD-optimized end tanks ID-matched pipes and a high-flow 4 inch-thick core result in a 1.5 PSI pressure drop so less of the boost your turbo makes is wasted.----Performance is great but if you have to destroy your car for it it's useless. Our kit contains everything needed for installation with no cutting of the bumper or body required. Our intercooler kit also retains the factory side impact bars and includes a bumper support bar with factory tow hook mounting for safety on the track and the street. The included washer fill neck relocation kit keeps maintenance easy while allowing for a clean install.----So If you're ready to ditch your stock heat-soak-prone intercooler it's time to upgrade to the Mishimoto Performance Front Mount Intercooler Kit. Designed for dependable performance and backed by Mishimoto's Lifetime Warranty our 2022+ WRX front mount intercooler kit is the perfect choice for bringing your WRX to the next level.
Specifications
| WIDTH | 25.4 |
|---|---|
| HEIGHT | 25.4 |
| LENGTH | 25.4 |
| PROP65 | Y |
| WEIGHT | 50.44 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | End Tank Material:Aluminum;Pipe Finish:Powder Coated;Hot Side Pipe Inside Diameter:2.4 IN;Cold Side Pipe Inside Diameter:2.4 IN;Intercooler Type:Air-to-Air;Core Construction:Bar-and-Plate;End Tank Construction:Cast;Core Height:12.14 IN;Core Thickness:3.93 IN;Core Material:Aluminum;Universal Or Specific Fit:Specific;Grade Type:Performance;Pipe Material:Aluminum;Pipe Color:Red;Core Length:26.57 IN;Inlet Diameter:2.4 IN;Coupler Color:Black;Coupler Material:Silicone;Hose Clamps Included:Yes;Outlet Diameter:2.4 IN;Maximum Boost Pressure:60 PS;Core Color:Black;Maximum Horsepower:1000 HJ;Install Difficulty:3;OptionLabel:Black Cooler--Red Pipes;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune;SellingPoint02:Lowers outlet temperatures to within 10-degrees of ambient air temp;SellingPoint03:4-inch thick core protects against heat soak and detonation;SellingPoint04:Includes bumper support bar with tow hook location to keep your WRX track-ready;SellingPoint05:Comprehensive kit includes everything needed for installation;SellingPoint06:Safe for use with stock tuning;SellingPoint07:ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop;SellingPoint08:Built-in crash bar hooks make installation a one-person job;SellingPoint09:Cast end tanks withstand massive boost pressures;SellingPoint10:Includes washer fill neck relocation for easy maintenance;SellingPoint11:No bending of A/C lines required;SellingPoint12:Fits with most popular strut bars;SellingPoint13:Fits with Mishimoto radiator and oil cooler;SellingPoint14:Patent Pending;SellingPoint15:Mishimoto Lifetime Warranty;TechSpec Applications:Subaru WRX 2.4L H4 2022+;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:VB;TechSpec Core Height (in):12.14;TechSpec Core Length (in):26.57;TechSpec Core Thickness (in):3.93;TechSpec Core Type:Bar-and-Plate;TechSpec Engine Codes:FA24F;TechSpec Includes:(1) Front Mount Intercooler--(1) Pipe and Boot Kit with Adaptors--(1) Bumper Support Bar--(1) Washer Fluid Fill Neck Relocation-- Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.4;TechSpec Installation Notes:N/A;TechSpec Maximum Recommended Boost Pressure (PSI):60;TechSpec Maximum Recommended Horsepower:1000;TechSpec Note:N/A;TechSpec Outlet (in):2.4;TechSpec Overall Height (in):12.89 (intercooler);TechSpec Overall Length (in):40.22 (intercooler);TechSpec Overall Width (in):6 (intercooler);TechSpec Pipe Diameter:2.5;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMINT-WRX-22_InstallGuide_REVA.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
