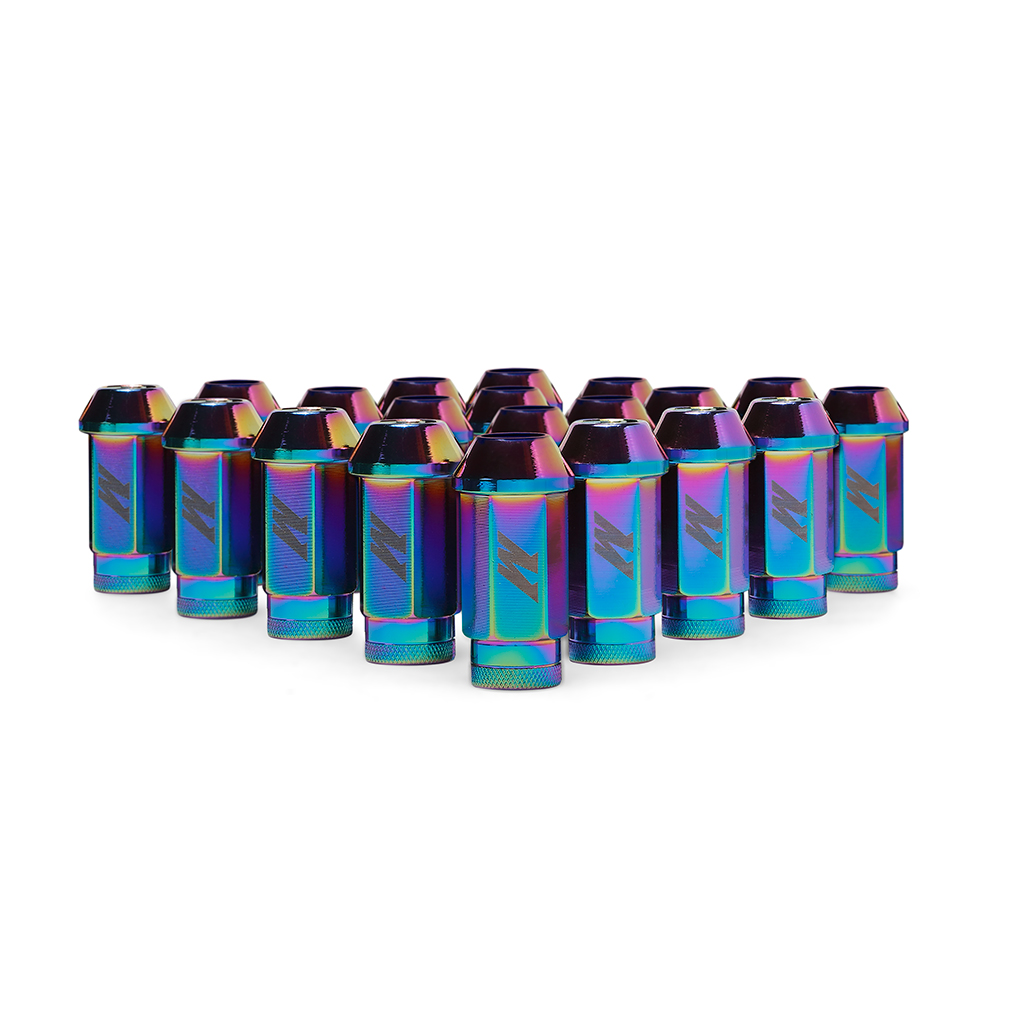

Mishimoto MMLG-1220-LOCKNC Aluminum Locking Lug Nuts, Neo Chrome, 1/2 in x 20
$131
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Upgrade the styling of your vehicle's exterior with a set of Mishimoto Aluminum Locking Lug Nuts! These lug nuts are constructed from a single piece of 7075-T6 aircraft-quality aluminum and are the perfect complement to both stock and aftermarket wheels. These lug nuts weigh in at just 0.8 oz (22.68 g) each and provide a lightweight yet durable alternative to your stock lug nuts. Each kit includes 16 standard lug nuts 7 locking lug nuts and one key for removal. These lug nuts utilize an open-ended design with a total length of 50 mm conical seat to fit many OEM and aftermarket wheels and a knurled end for speedy installation. These Mishimoto aluminum locking lug nuts fit vehicles with 1/2" x 20 wheel studs and come in a variety of finishes including black blue silver or red. As with all our products these lug nuts include the Mishimoto Lifetime Warranty
Specifications
| WIDTH | 3 |
|---|---|
| HEIGHT | 5.5 |
| LENGTH | 7 |
| PROP65 | Y |
| WEIGHT | 1.88 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| PCDB CATEGORY | Tire and Wheel |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Wheel Lug Nut |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/lug nut note card alt.PDF |
| MATERIAL | Aluminum |
| THREAD DIRECTION | Clockwise (Right) |
| THREAD TYPE STANDARD | UNF |
| COLOR | Neochrome |
| SHANK LENGTH | 50 MM |
| GRADE TYPE | Performance |
| HEX SIZE | 19mm |
| SEAT TYPE | Conical |
| SAE OR METRIC | SAE |
| THREAD SIZE | 1/2" - 20 |
| WHEEL LOCK KEY INCLUDED | Yes |
| SHANK DIAMETER | 19 MM |
| INSTALL DIFFICULTY | 1 |
| OPTION LABEL | Neo Chrome |
| PROP 65 SHORT LABEL | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| PROP 65 Y/N | Y |
| SELLING POINT01 | Fit vehicles equipped with 1/2-in x 20 wheel studs |
| SELLING POINT02 | Conical seat design fits many OEM and aftermarket wheels |
| SELLING POINT03 | Crafted from a single piece of 7075-T6 aircraft-quality aluminum |
| SELLING POINT04 | Extremely lightweight each weighing only 0.8 oz / 22.68 g |
| SELLING POINT05 | Open-ended design with a total length of 50mm |
| SELLING POINT06 | Includes 16 standard lug nuts 7 locking lug nuts and one key |
| SELLING POINT07 | Ultimate tensile strength: 74 000-78 000 psi |
| SELLING POINT08 | Minimum yield strength: 63 000-69 000 psi |
| SELLING POINT09 | Includes three extra locking lugs for use on hatch-mounted spare wheels |
| SELLING POINT10 | Available in anodized finishes of black blue silver or red |
| SELLING POINT11 | A portion of all proceeds will be donated via the Mishimoto Chilly Cares program |
| SELLING POINT12 | Mishimoto Lifetime Warranty |
| SELLING POINT13 | N/A |
| SELLING POINT14 | N/A |
| SELLING POINT15 | N/A |
| TECH SPEC APPLICATIONS | N/A |
| TECH SPEC DIAMETER (INCHES) | N/A |
| TECH SPEC ENGINE CODES | N/A |
| TECH SPEC INCLUDES | (16) Conical Seat Racing Lug Nuts--(7) Locking Lug Nuts--Lock Key--Mishimoto Lifetime Warranty |
| TECH SPEC INSTALLATION NOTES | 70-80 lb-ft |
| TECH SPEC LENGTH (INCHES) | N/A |
| TECH SPEC MATERIAL | 7075-T6 aluminum |
| TECH SPEC MAXIMUM PRESSURE (PSI) | N/A |
| TECH SPEC MAXIMUM TEMPERATURE (F) | N/A |
| TECH SPEC MINIMUM YIELD STRENGTH | 63 000 |
| TECH SPEC NOTE | Anodized finishes may fade when abrasive or corrosive cleaners are used. In addition the use of power tools may also damage the finish. Mishimoto Automotive will not warrant nuts for fading finishes or damage occurring from use of tools. |
| TECH SPEC OVERALL HEIGHT (INCHES) | N/A |
| TECH SPEC THREAD SIZE | 1/2 x 20 |
| TECH SPEC ULTIMATE TENSILE STRENGTH | 78 000 |
| TECH SPEC WEIGHT (OUNCES) | N/A |
