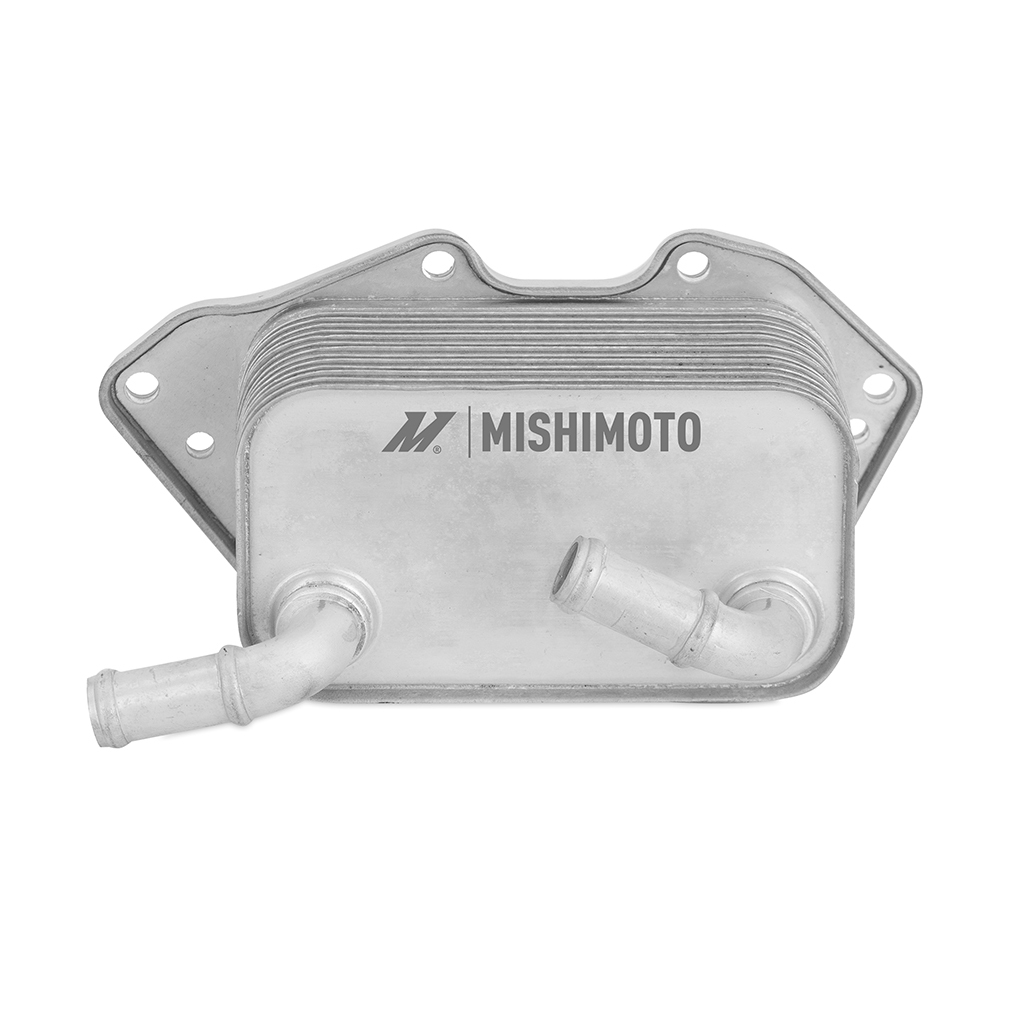

Mishimoto MMOC-SQ5-14 Replacement Oil Cooler, fits Audi SQ5 2014-2016
$48
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
The factory transmission oil cooler on 2014-2016 Audi SQ5 vehicles is a liquid-to-liquid cooling unit utilizing the engine's cooling system to cool the transmission fluid during warm outside temperatures and warm the fluid during cold outside temperatures. Though these designs are tried and true they eventually wear out and fail leading to leaking coolant into your transmission fluid. Mixing coolant into your transmission fluid can have catastrophic results potentially costing thousands of dollars in transmission rebuilding or replacement.--The Mishimoto Replacement Transmission Oil Cooler is a direct fit to the OEM making it easy to install and equivalent to the OEM's performance specifications. This product requires no modifications and is backed by the Mishimoto Lifetime warranty. Replace your transmission cooler and prevent premature failure.
Specifications
| WIDTH | 6.5 |
|---|---|
| HEIGHT | 5.4 |
| LENGTH | 8.7 |
| PROP65 | Y |
| WEIGHT | 2.3 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Line Included:No;Thickness:3.88 IN;Finish:Natural Aluminum;Width:7.62 IN;Core Height:2.15 IN;Core Thickness:2.38 IN;Core Width:5.35 IN;Mounting Hardware Included:No;Core Material:Aluminum;Height:4.98 IN;Grade Type:Standard Replacement;Electric Fan:No;Inlet Diameter:16 MM;Outlet Diameter:16 MM;Install Difficulty:2;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2014-2016 Audi SQ5;SellingPoint02:Equivalent to OEM specifications for fit and function;SellingPoint03:Replaces leaking or failing factory transmission oil cooler;SellingPoint04:Durable corrosion-resistant aluminum construction;SellingPoint05:Includes bracket for easy installation;SellingPoint06:Utilizes all factory lines and hardware;SellingPoint07:No modification required for installation;SellingPoint08:Includes Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2005-2009 Audi A4 V6 3.2L--2005-2011 Audi A6 V6 3.2L/3.0--2012-2015 Audi A6 V6 3.0L--2012-2015 Audi A7 V6 3.0L--2013-2014 Audi A8 V6 3.0L--2010-2016 Audi S4 V6 3.0L--2010-2017 Audi S5 V6 3.0L--2013-2017 Audi Q5 V6 3.0L--2014-2017 Audi SQ5 V6 3.0L--2011-2015 Audi Q7 V6 3.0L--2011-2015 Volkswagen Touareg V6 3.0L;TechSpec Caution:N/A;TechSpec Chassis Codes:B7--B8--C6--C7--D4--4L--8R;TechSpec Core Construction:Stacked Plate;TechSpec Core Height (in):2.15;TechSpec Core Length (in):5.35;TechSpec Core Thickness (in):2.38;TechSpec Engine Codes:BKH--CAKA--CCBA-CTUB--CCAA-CAJA--CGFA--CTUC--CGXB--CTUD--CJWC--CJWE--CJWB--CCBA--CJXC--;TechSpec Fluid Capacity (qts):N/A;TechSpec Includes:(1) Oil Cooler Assembly-- (1) Oil Cooler Gasket-- Mishimoto Lifetime Warranty;TechSpec Inlet:16mm;TechSpec Installation Notes:N/A;TechSpec Note:N/A;TechSpec Outlet:16mm;TechSpec Overall Height (in):4.98;TechSpec Overall Length (in):7.62;TechSpec Overall Width (in):3.88;TechSpec Rows:N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Automatic Transmission Oil Cooler |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
