cooling

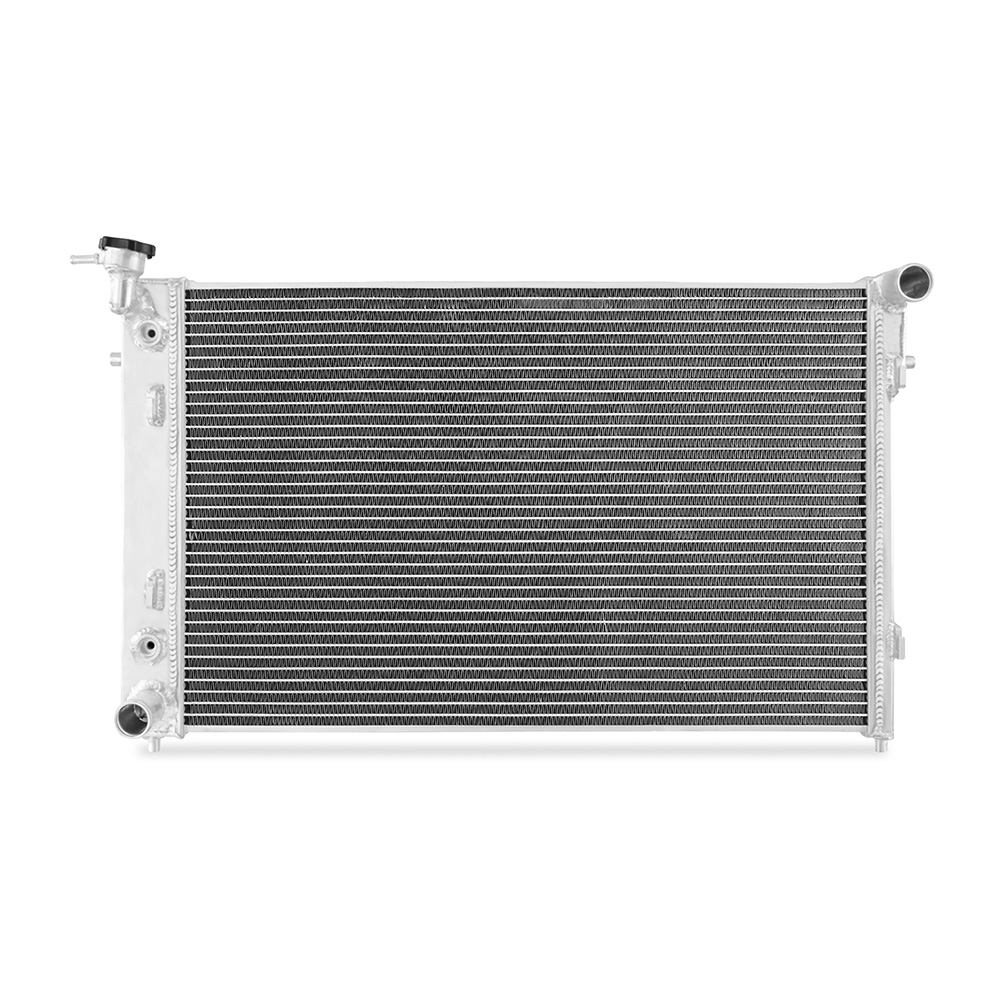

Mishimoto MMRAD-CMDRV6-02 Performance Aluminum Radiator, fits Holden VY Commodore V6 3.8L 2002-2005
$621
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Give some extra cooling power to the V6 under the hood of your 2002-2005 VY Holden Commodore V6 with the Mishimoto Performance Aluminum Radiator. Our radiator design swaps out the thin core and plastic end tanks for full aluminum construction TIG-welded for maximum durability. The Mishimoto design also features a 2" thick 2-row core for maximum cooling no matter where ever you drive your Commodore. The Mishimoto 2002-2005 VY Holden Commodore V6 Performance Aluminum Radiator is available in a polished finish and provides optimal cooling for both manual and automatic vehicles. This radiator also includes the Mishimoto Lifetime Warranty for a worry-free installation.
Specifications
| WIDTH | 8.5 |
|---|---|
| HEIGHT | 27 |
| LENGTH | 36 |
| PROP65 | Y |
| WEIGHT | 22.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:No;Overall Height:18.4 IN;Core Height:0 IN;Core Thickness:0 IN;Core Material:Aluminum;Outlet Location:Bottom Left;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:0 IN;Core Row Quantity:2;Inlet Diameter:0 IN;Inlet Location:Top Right;Outlet Diameter:0 IN;Fluid Capacity:0 GA;Down Flow Or Cross Flow Type:Cross Flow;Overall Length:29.5 IN;Overall Width:3.8 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2002-2005 VY Holden Commodore V6 3.8L;SellingPoint02:Full aluminum construction including durable TIG-welded end tanks;SellingPoint03:Features a two-row 2-in thick efficiently brazed aluminum core;SellingPoint04:Provides efficient temperature reduction on the street track and drag strip;SellingPoint05:Increased fluid capacity and optimal heat dissipation;SellingPoint06:Efficient temperature regulation for both stock and modified vehicles;SellingPoint07:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint08:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint09:Mishimoto Lifetime Warranty;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2002-2005 Holden Commedore V6;TechSpec Chassis Codes:VY;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):N/A;TechSpec DPI:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:3.8 EcoTech--3.8 Supercharged;TechSpec Fluid Capacity (gal):N/A;TechSpec Includes:Performance Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty;TechSpec Inlet (in):N/A;TechSpec Material:Aluminum;TechSpec Note:N/A;TechSpec Outlet (in):N/A;TechSpec Overall Height (in):18.4;TechSpec Overall Length (in):29.5;TechSpec Overall Width (in):3.8;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
Datasheet — not yet published
