cooling
Mishimoto MMRAD-CTR-23 Performance Aluminum Radiator, fits Honda Civic Type R 2023+
$750
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

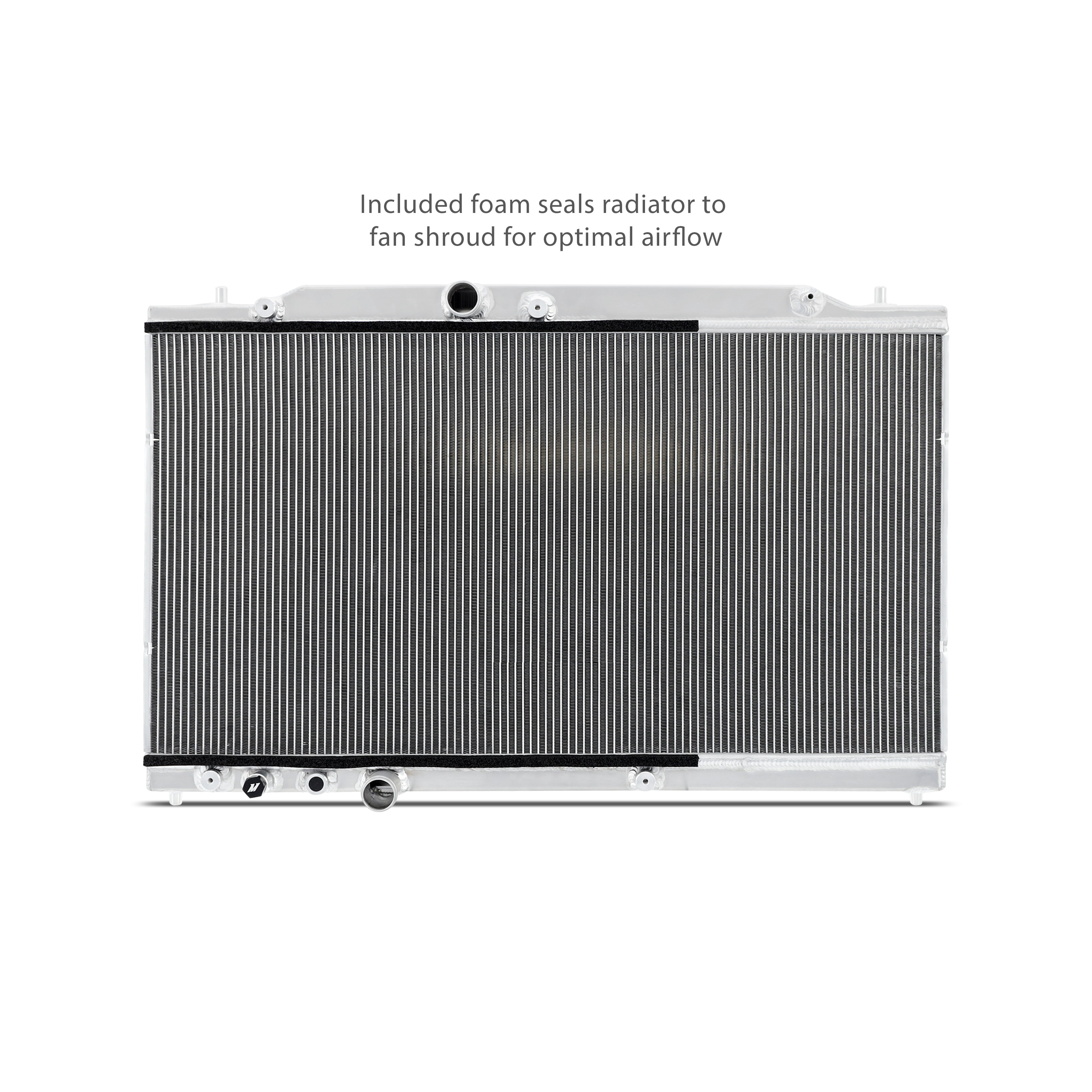

Upgrade the cooling system of your 2023+ Honda Civic Type R with the Mishimoto Performance Radiator engineered to utilize every millimeter possible for maximum efficiency and durability with a 17% heat rejection lowering temps on average between five to ten degrees. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that's designed to resist chassis flex during intense driving. With a 49% increase in core volume a 31% larger external fin area and a 31% boost in internal tube area this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions. -- Designed as a direct-fit upgrade this radiator offers plug-and-play installation without the need for bumper removal. Radiator include foam seals to fan shroud for optimal airflow and is also fully compatible with stock hoses making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris and this radiator comes backed by the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 7 |
|---|---|
| HEIGHT | 22.5 |
| LENGTH | 32 |
| PROP65 | Y |
| WEIGHT | 22.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:19.8 IN;Core Height:15.8 IN;Core Thickness:1.5 IN;Core Material:Aluminum;Outlet Location:Bottom Left;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:No;Core Length:29.8 IN;Core Row Quantity:1;Inlet Diameter:1.26 IN;Inlet Location:Top Left;Outlet Diameter:1.26 IN;Fluid Capacity:0.87 GA;Down Flow Or Cross Flow Type:Down Flow;Overall Length:30.4 IN;Overall Width:4.5 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2023+ Honda Civic Type R;SellingPoint02:All-aluminum design with precision TIG-welded end tanks;SellingPoint03:Plug-and-play installation without need for bumper removal;SellingPoint04:Pair with MMHOSE-CTR-23 for a complete cooling system;SellingPoint05:17% increase in heat rejection creating on average a 5 – 10 degree drop in outlet temperatures;SellingPoint06:49% increase in core volume for improved cooling capacity;SellingPoint07:31% increase in external fin area to efficiently transfer heat from coolant;SellingPoint08:31% increase in internal tube area for improved heat dissipation;SellingPoint09:Sturdy 40mm thick strutted tube single row core resists chassis flex;SellingPoint10:Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system;SellingPoint11:Included foam seals radiator to fan shroud for optimal airflow;SellingPoint12:Mishimoto Lifetime Warranty;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:Acura Integra Type S 2 L4 2024+--Honda Civic Type R 2 L4 2023+;TechSpec Chassis Codes:FL5--DE5;TechSpec Core Height (in):15.8;TechSpec Core Length (in):29.8;TechSpec Core Thickness (in):1.5;TechSpec DPI:7221;TechSpec Drain Plug Thread Size:M12 X 1.5;TechSpec Engine Codes:K20C1;TechSpec Fluid Capacity (gal):0.9 GA;TechSpec Includes:(1) Mishimoto Performance Radiator--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.26;TechSpec Material:Aluminum;TechSpec Note:N/A;TechSpec Outlet (in):1.26;TechSpec Overall Height (in):19.8;TechSpec Overall Length (in):30.4;TechSpec Overall Width (in):4.5;TechSpec Rows:1 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
