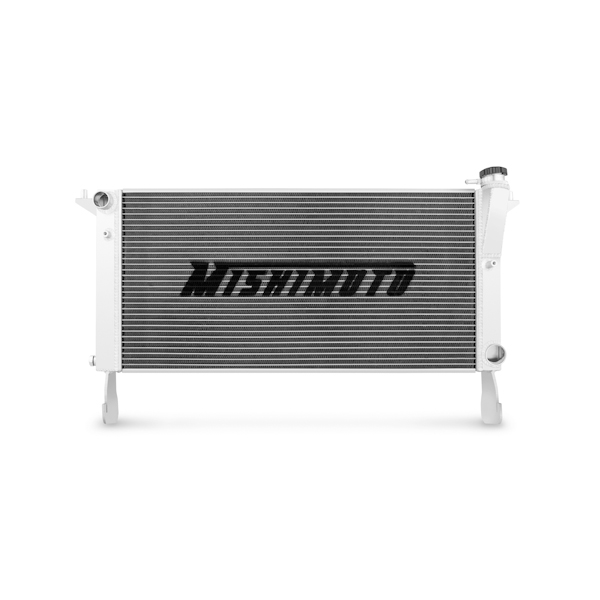

Mishimoto MMRAD-GEN4-10 Performance Aluminum Radiator, fits Hyundai Genesis Coupe 2.0T 2010-2012
$350
Made to order
Add your car with the “Your car” button in the header to check fitment.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Mishimoto has developed a performance aluminum radiator available for the 2010-2012 Hyundai Genesis Coupe 2.0T. This is the ideal upgrade to your stock 2010-2012 Hyundai Genesis Coupe 2.0T radiator.Having a turbo set up produces a great amount of heat; by replacing your current 2010-2012 Hyundai Genesis Coupe 2.0T radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler more efficient running engine.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
Specifications
| WIDTH | 7.6 |
|---|---|
| HEIGHT | 24 |
| LENGTH | 33.6 |
| PROP65 | Y |
| WEIGHT | 30.1 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:32.48 IN;Core Height:12.5 IN;Core Thickness:1.97 IN;Core Material:Aluminum;Outlet Location:Bottom Right;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:25.5 IN;Core Row Quantity:2;Inlet Diameter:1.4 IN;Inlet Location:Top Left;Outlet Diameter:1.4 IN;Fluid Capacity:1.64 GA;Down Flow Or Cross Flow Type:Cross Flow;Overall Length:17.8 IN;Overall Width:2.47 IN;Install Difficulty:4;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T;SellingPoint02:Full aluminum construction with durable TIG-welded end tanks;SellingPoint03:Functions with both stock and aftermarket front-mount intercoolers;SellingPoint04:Features a two-row 1.97-in thick efficient brazed aluminum core;SellingPoint05:Increased fluid capacity and superior heat dissipation;SellingPoint06:Provides optimal heat exchange for both stock and highly modified vehicles;SellingPoint07:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint08:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint09:Mishimoto Lifetime Warranty;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2010-2012 Hyundai Genesis Coupe 2.0T;TechSpec Chassis Codes:BK;TechSpec Core Height (in):12.5;TechSpec Core Length (in):25.5;TechSpec Core Thickness (in):1.97;TechSpec DPI:13120;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:N/A;TechSpec Fluid Capacity (gal):1.7 GA;TechSpec Includes:Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.4;TechSpec Material:Aluminum;TechSpec Note:This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto transmission cooler (P/N: MMTC-U);TechSpec Outlet (in):1.4;TechSpec Overall Height (in):32.48;TechSpec Overall Length (in):17.8;TechSpec Overall Width (in):2.47;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
| VERIFIED FITMENT |
|
