cooling

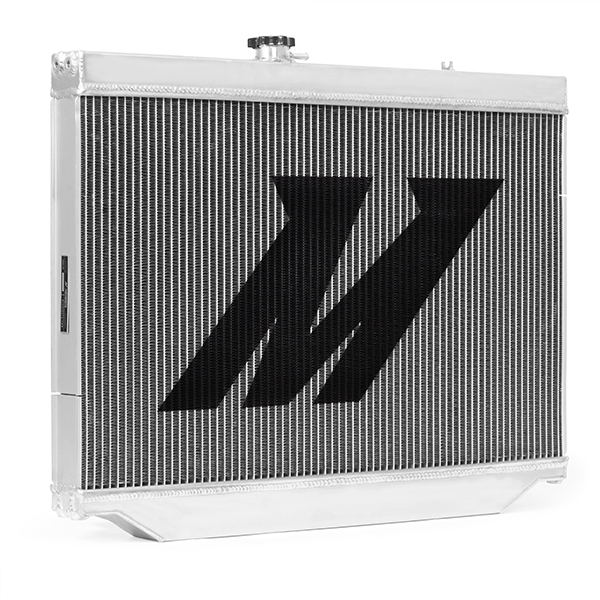

Mishimoto MMRAD-LCR-98 Performance Aluminum Radiator, fits Toyota Land Cruiser J100 (1HZ 1FE) 1998-2007
$630
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
If you're looking to upgrade your Toyota J100/J105 cooling look no further! The Mishimoto 1998-2007 Toyota Land Cruiser J100/J105 Performance Aluminium Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 29.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100/J105 radiator features durable aircraft-quality aluminium end tanks that are precision TIG-welded to the 56mm-thick core for superior durability. This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminium radiator this 1998-2007 Toyota Land Cruiser J100/J105 radiator includes the Mishimoto Lifetime Warranty ensuring superior Products quality and craftsmanship for as long as you own the radiator.
Specifications
| WIDTH | 25.5 |
|---|---|
| HEIGHT | 8.5 |
| LENGTH | 34.25 |
| PROP65 | Y |
| WEIGHT | 24.2 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:22.25 IN;Core Height:16.93 IN;Core Thickness:2.2 IN;Core Material:Aluminum;Outlet Location:Bottom Right;Transmission Oil Cooler Included:Yes;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:27.64 IN;Core Row Quantity:2;Inlet Diameter:0 IN;Inlet Location:Top Left;Outlet Diameter:0 IN;Fluid Capacity:3.9 GA;Down Flow Or Cross Flow Type:Down Flow;Overall Length:28 IN;Overall Width:6.1 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 1998-2007 Toyota Land Cruiser J100/J105 with 4.2L 1HZ or 4.5L 1FZ engines;SellingPoint02:Full aluminum construction including durable TIG-welded end tanks;SellingPoint03:56mm thick two-row core for powerful cooling;SellingPoint04:29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency;SellingPoint05:19-percent increase in core volume over stock radiator;SellingPoint06:Includes internal transmission cooler to fit with either manual or automatic transmissions;SellingPoint07:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint08:Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:1998-2007 Toyota Land Cruiser J100/J105 w/ 1HZ 4.2L Diesel--1998-2007 Toyota Land Cruiser J100/J105 w/ 1FZ 4.5L Petrol;TechSpec Chassis Codes:J100--J105;TechSpec Core Height (in):16.93;TechSpec Core Length (in):27.64;TechSpec Core Thickness (in):2.2;TechSpec DPI:N/A;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:1HZ 4.2L Diesel--1FZ 4.5L Petrol;TechSpec Fluid Capacity (gal):3.9 GA;TechSpec Includes:Mishimoto Aluminum Radiator-- Mishimoto Radiator Cap-- Foam Strip--Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Inlet (in):N/A;TechSpec Material:Aluminum;TechSpec Note:This radiator uses mounting brackets that are separate from the radiator and the vehicle. The Mishimoto radiator is designed to work with the OEM brackets. If you are replacing an aftermarket radiator you may need to purchase OEM brackets to fit the Mishimoto radiator.;TechSpec Outlet (in):N/A;TechSpec Overall Height (in):22.25;TechSpec Overall Length (in):28;TechSpec Overall Width (in):6.1;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
Datasheet — not yet published
