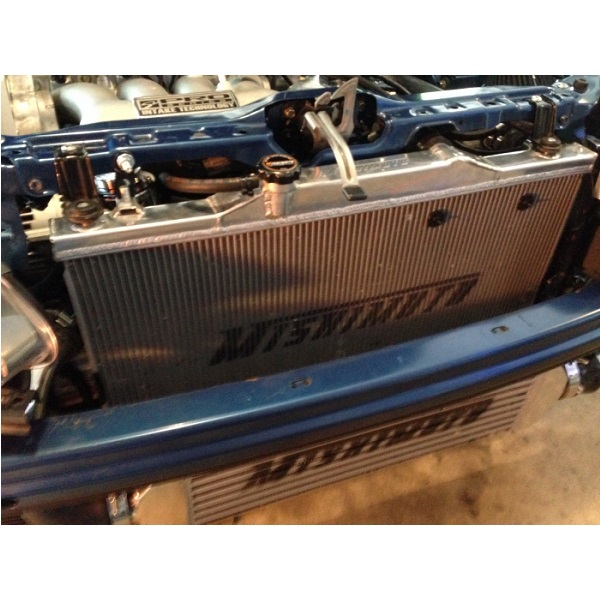

Mishimoto MMRAD-RSX-02 Performance Aluminum Radiator, fits Acura RSX 2002-2006
$333
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency boost engine functions and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap magnetic drain plug and an excellent warranty.
Specifications
| WIDTH | 21.6 |
|---|---|
| HEIGHT | 30.6 |
| LENGTH | 6.3 |
| PROP65 | Y |
| WEIGHT | 18 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:18.8 IN;Core Height:13.75 IN;Core Thickness:1.4 IN;Core Material:Aluminum;Outlet Location:Bottom Right;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:27.52 IN;Core Row Quantity:2;Inlet Diameter:1.25 IN;Inlet Location:Top Left;Outlet Diameter:1.25 IN;Fluid Capacity:1.91 GA;Down Flow Or Cross Flow Type:Down Flow;Overall Length:27.6 IN;Overall Width:1.9 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:2002-2006 Acura RSX;SellingPoint02:Full aluminum construction including durable TIG-welded end tanks;SellingPoint03:Features a two-row 1.4-in thick efficient brazed aluminum core;SellingPoint04:Increased fluid capacity and optimal heat dissipation;SellingPoint05:Provides efficient temperature reduction for both street and track use;SellingPoint06:Efficient temperature regulation for both stock and modified vehicles;SellingPoint07:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint08:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint09:Mishimoto Lifetime Warranty;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2002-2006 Acura RSX Type S;TechSpec Chassis Codes:DC5;TechSpec Core Height (in):13.75;TechSpec Core Length (in):27.52;TechSpec Core Thickness (in):1.4;TechSpec DPI:2412;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:K20a3--K20a1--K20z1;TechSpec Fluid Capacity (gal):2 GA;TechSpec Includes:Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.25;TechSpec Material:N/A;TechSpec Note:This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.;TechSpec Outlet (in):1.25;TechSpec Overall Height (in):18.8;TechSpec Overall Length (in):27.6;TechSpec Overall Width (in):1.9;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
| VERIFIED FITMENT |
|
