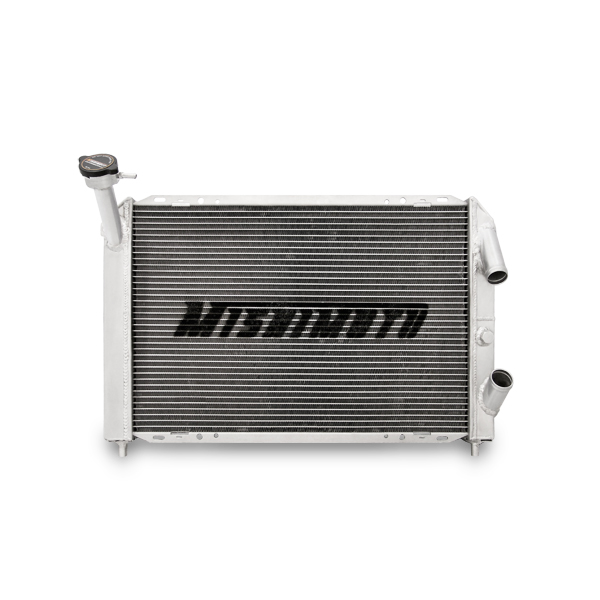

Mishimoto MMRAD-RX-LS Performance Aluminum Radiator, fits LS-Swapped Mazda RX-7 1993-1995
$400
Made to order
Add your car with the “Your car” button in the header to check fitment.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly protect your car from overheating.
Specifications
| WIDTH | 24 |
|---|---|
| HEIGHT | 9.6 |
| LENGTH | 30.6 |
| PROP65 | Y |
| WEIGHT | 22.25 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:27.34 IN;Core Height:15.75 IN;Core Thickness:2.17 IN;Core Material:Aluminum;Outlet Location:Bottom Right;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:22.2 IN;Core Row Quantity:2;Inlet Diameter:1.38 IN;Inlet Location:Top Right;Outlet Diameter:1.5 IN;Fluid Capacity:0 GA;Down Flow Or Cross Flow Type:Cross Flow;Overall Length:19.5 IN;Overall Width:2.67 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap;SellingPoint02:Provides a bolt-in cooling solution which simplifies the engine-swap process;SellingPoint03:Full aluminum construction including durable TIG-welded end tanks;SellingPoint04:Features a two-row 2.17-in thick efficient brazed aluminum core;SellingPoint05:Increased fluid capacity and optimal heat dissipation;SellingPoint06:Provides efficient temperature reduction for street and/or track use;SellingPoint07:Efficient temperature regulation for both stock and forced induction vehicles;SellingPoint08:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint09:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint10:Mishimoto Lifetime Warranty;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Chassis Codes:FD;TechSpec Core Height (in):15.75;TechSpec Core Length (in):22.2;TechSpec Core Thickness (in):2.17;TechSpec DPI:2067;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:LS;TechSpec Fluid Capacity (gal):N/A;TechSpec Includes:Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.38;TechSpec Material:Aluminum;TechSpec Note:Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.;TechSpec Outlet (in):1.5;TechSpec Overall Height (in):27.34;TechSpec Overall Length (in):19.5;TechSpec Overall Width (in):2.67;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
| VERIFIED FITMENT |
|
