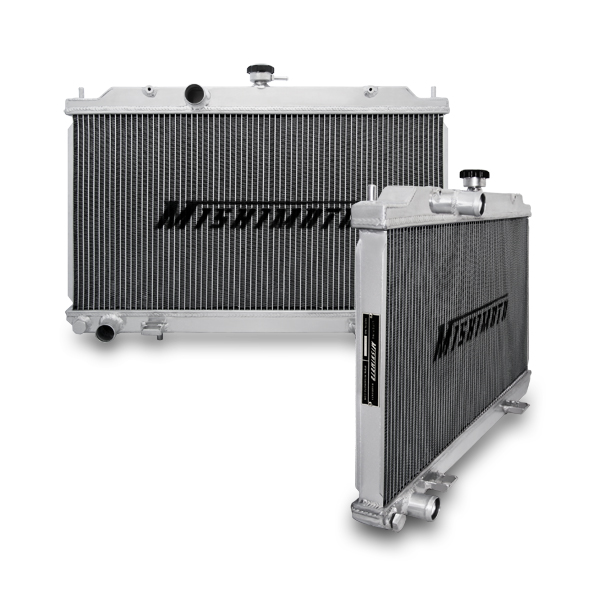

Mishimoto MMRAD-SEN-00 Performance Aluminum Radiator, fits Nissan Sentra SE-R / Spec-V 2002-2006
$330
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum 2002-2005 Sentra radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Sentra radiator.
Specifications
| WIDTH | 22 |
|---|---|
| HEIGHT | 30 |
| LENGTH | 5 |
| PROP65 | Y |
| WEIGHT | 10 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:28 IN;Core Height:27.08 IN;Core Thickness:1.42 IN;Core Material:Aluminum;Outlet Location:Bottom Left;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:14.37 IN;Core Row Quantity:2;Inlet Diameter:1.4 IN;Inlet Location:Top Left;Outlet Diameter:1.4 IN;Fluid Capacity:2.03 GA;Down Flow Or Cross Flow Type:Down Flow;Overall Length:19.8 IN;Overall Width:1.92 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V;SellingPoint02:Full aluminum construction including durable TIG-welded end tanks;SellingPoint03:Features a two-row 1.42-in thick efficient brazed aluminum core;SellingPoint04:Increased fluid capacity and optimal heat dissipation;SellingPoint05:Provides efficient temperature reduction for street and/or track use;SellingPoint06:Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system;SellingPoint07:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint08:Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2002-2006 Nissan Sentra SE-R--2002-2006 Nissan Sentra Spec-V--2003 Nissan Sentra Limited Edition;TechSpec Chassis Codes:B15;TechSpec Core Height (in):27.08;TechSpec Core Length (in):14.37;TechSpec Core Thickness (in):1.42;TechSpec DPI:2469;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:QR25DE;TechSpec Fluid Capacity (gal):2.1 GA;TechSpec Includes:Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.4;TechSpec Material:Aluminum;TechSpec Note:This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.;TechSpec Outlet (in):1.4;TechSpec Overall Height (in):28;TechSpec Overall Length (in):19.8;TechSpec Overall Width (in):1.92;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
