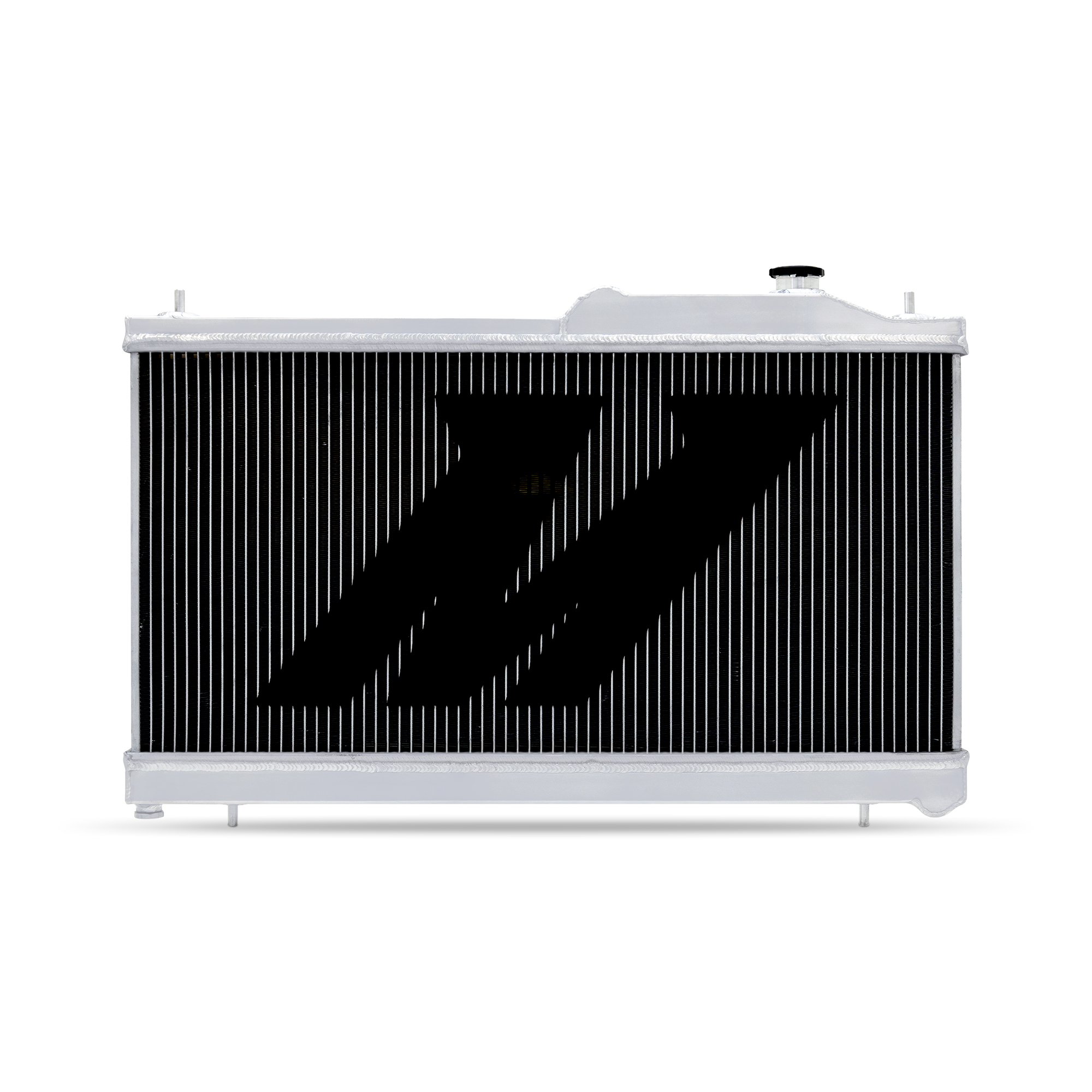

Mishimoto MMRAD-STI-08 Performance Aluminum Radiator, fits Subaru WRX 2008-2014/Subaru STI 2008-2021
$350
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Whether you're carving through back roads in your WRX or pushing your STI to the limit on track day maintaining optimal coolant temperatures is essential to protecting your EJ engine. The factory radiator's plastic end tanks and limited cooling capacity can quickly become a weak link especially under the high demands of spirited driving or hot summer commutes. A failure in the cooling system can lead to overheating head gasket issues and costly repairs that cut your driving adventures short. The Mishimoto Performance Aluminum Radiator for the 2008–2014 Subaru WRX and 2008–2021 Subaru STI is engineered to be the ultimate safeguard for your engine delivering improved cooling efficiency and durability over stock. -- Built with a lightweight dual-core design and 100% brazed aluminum construction this radiator maximizes heat dissipation and withstands higher pressures to keep your engine performing at its best. The TIG-welded polished end tanks add strength and a premium finish while the direct-fit design ensures a straightforward installation with no cutting or modification required. The included high-pressure 1.3 bar radiator cap raises the boiling point of your coolant for an extra margin of safety under heavy loads and a second radiator cap is included for use on the expansion tank. With up to a 30% increase in cooling efficiency over the factory unit this upgrade is ideal for daily driving spirited runs or competitive use. -- Backed by the Mishimoto Lifetime Warranty including accident protection this radiator is built to keep your Subaru running strong for years to come.
Specifications
| WIDTH | 23.3 |
|---|---|
| HEIGHT | 6.4 |
| LENGTH | 31.4 |
| PROP65 | Y |
| WEIGHT | 14.45 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:21.8 IN;Core Height:13.39 IN;Core Thickness:1.65 IN;Core Material:Aluminum;Outlet Location:Bottom Left;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:Yes;Core Length:27.08 IN;Core Row Quantity:2;Inlet Diameter:1.54 IN;Inlet Location:Top Left;Outlet Diameter:1.54 IN;Fluid Capacity:2.21 GA;Down Flow Or Cross Flow Type:Down Flow;Overall Length:28 IN;Overall Width:2.15 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2008-2014 Subaru WRX/2008-2021 STI;SellingPoint02:Full aluminum construction features durable TIG-welded end tanks;SellingPoint03:Features a two-row 1.65” thick brazed aluminum core;SellingPoint04:Increased coolant capacity directly results in improved cooling efficiency;SellingPoint05:Provides efficient temperature reduction for use on the street track rallycross or autocross course;SellingPoint06:Now includes two 1.3 bar high-pressure caps raising the boiling point of engine coolant to provide a safer more efficient system;SellingPoint07:Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating;SellingPoint08:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint09:Mishimoto Lifetime Warranty;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2008-2014 Subaru WRX--2008-2019 Subaru STI--2009-2013 Subaru Forester XT--2005-2009 Subaru Outback XT--2005-2009 Subaru Legacy GT;TechSpec Chassis Codes:GE--GH;TechSpec Core Height (in):13.39;TechSpec Core Length (in):27.08;TechSpec Core Thickness (in):1.65;TechSpec DPI:13091/13093;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:EJ255--EJ257;TechSpec Fluid Capacity (gal):2.3 GA;TechSpec Includes:(1) Mishimoto Radiator--(1) Mishimoto Two-Way Radiator Cap--(1) Mishimoto One-Way Radiator Cap--(2) Overflow Ports--(1) Magnetic Drain Plug--Fan Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.54;TechSpec Material:N/A;TechSpec Note:This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.--Caution--The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).--It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation. For additional technical information contact support@mishimoto.com.--Use small fitting for:--2008-2009 Subaru WRX--2008-2019 Subaru STI----Use large fitting for:--2010-2014 Subaru WRX--2005-2009 Subaru Legacy GT--2005-2009 Subaru Outback XT--2009-2013 Subaru Forester XT;TechSpec Outlet (in):1.54;TechSpec Overall Height (in):21.8;TechSpec Overall Length (in):28;TechSpec Overall Width (in):2.15;TechSpec Rows:2 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMRC-13-ONWY_Install-Guide.pdf |
| VERIFIED FITMENT |
|
