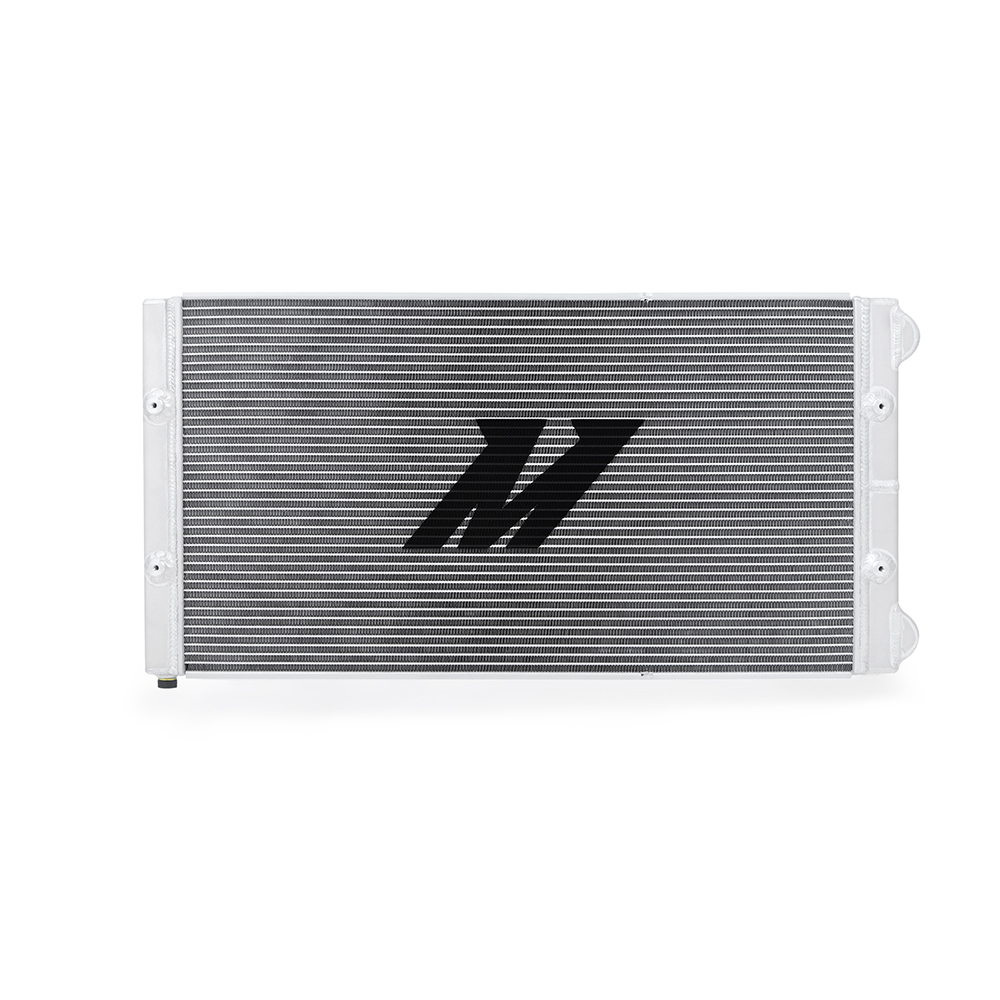

Mishimoto MMRAD-UNI-RRV2 Race-Ready Performance Aluminum Radiator, 29.92 in x 15.28in x 2.75in
$477
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
If you demand the absolute most from your cooling system look no further than the Mishimoto Race-Ready Performance Aluminum Radiator. This race-ready radiator is perfect for your custom build. Its 1.26in-thick dual-pass core ensures effective cooling while the strutted tubes can withstand more than 100 psi and resist flexing over rough terrain or hard cornering. Designed with adaptability in mind this radiator features 1-5/8in-12 female threaded inlets and outlets for use with our billet aluminum interchangeable -16AN -20AN 1.25" and 1.5" fittings. This radiator is constructed from aircraft-quality TIG-welded aluminum and like all Mishimoto radiators comes backed by our signature Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 5.8 |
|---|---|
| HEIGHT | 31 |
| LENGTH | 21.2 |
| PROP65 | Y |
| WEIGHT | 14.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Drain Plug Thread Size:M12 - 1.5;Core Finish:Uncoated;Drain Plug Included:Yes;Overall Height:29.92 IN;Core Height:13.64 IN;Core Thickness:1.26 IN;Core Material:Aluminum;Outlet Location:Bottom Left;Transmission Oil Cooler Included:No;Transmission Oil Cooler Fitting Type:N/A;Radiator Cap Included:No;Core Length:24.61 IN;Core Row Quantity:1;Inlet Diameter:1.63 IN;Inlet Location:Top Left;Outlet Diameter:1.63 IN;Fluid Capacity:0 GA;Down Flow Or Cross Flow Type:Cross Flow;Overall Length:15.28 IN;Overall Width:2.75 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Universal fitment for projects requiring exceptional fluid cooling;SellingPoint02:Unique dual pass design is precision engineered to provide substantial heat transfer;SellingPoint03:Full aluminum construction with brazed core for optimal durability and pressure tolerance;SellingPoint04:Efficient 1.26-in thick core provides substantial fluid capacity and superior fluid temperature reduction;SellingPoint05:Strong internal tubes designed to withstand over 100psi of pressure;SellingPoint06:Female threaded inlet/outlet allows for the use of available -AN fittings or standard push-on hose fittings;SellingPoint07:Compact yet highly efficient design ideal for use on track-specific vehicles requiring an extremely effective heat exchanger;SellingPoint08:Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system;SellingPoint09:Mishimoto Lifetime Warranty;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Height (in):13.64;TechSpec Core Length (in):24.61;TechSpec Core Thickness (in):1.26;TechSpec DPI:N/A;TechSpec Drain Plug Thread Size:M12 x 1.5;TechSpec Engine Codes:N/A;TechSpec Fluid Capacity (gal):N/A;TechSpec Includes:Mishimoto Race-Ready Performance Aluminum Radiator--(2) 1/8-inch NPT Plug-- Mishimoto Magnetic Drain Plug--Mishimoto Lifetime Warranty;TechSpec Inlet (in):1.63;TechSpec Material:N/A;TechSpec Note:This radiator is only compatible with our black radiator fittings with 1-5/8-inch-12 threads. It is not compatible with our previous silver fittings with metric threads.----This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.;TechSpec Outlet (in):1.63;TechSpec Overall Height (in):29.92;TechSpec Overall Length (in):15.28;TechSpec Overall Width (in):2.75;TechSpec Rows:1 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Radiator |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/Radiator_Install-Guide_Universal.pdf |
Datasheet — not yet published
