exterior and body

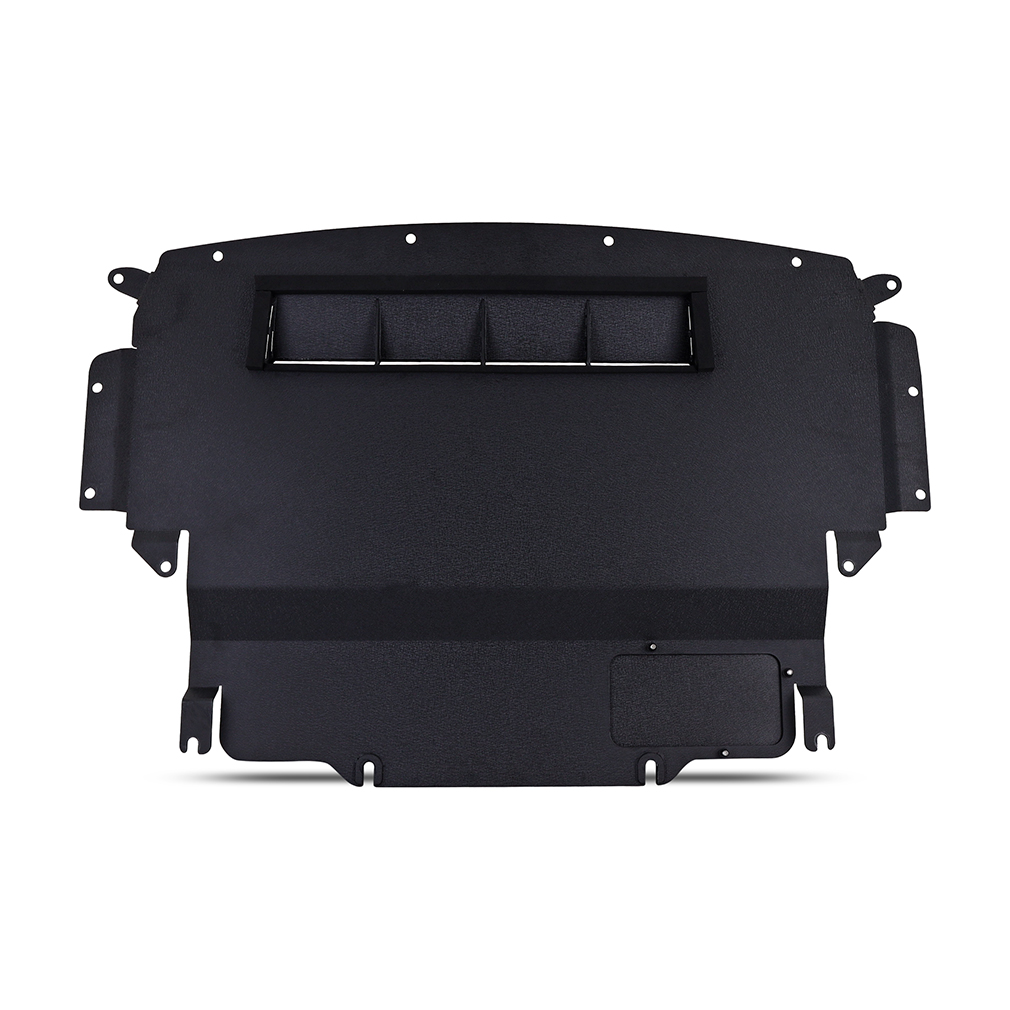

Mishimoto MMSD-Z-23WBK Skid Plate, Black, fits Nissan Z 2023+
$447
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Your Z's factory splash shield is just that a splash shield. It works to keep water and dirt out of the engine bay but that's about all it does well. One well placed bump or unlucky rock and you can say goodbye to the stock splash shield and if you're really unlucky your engine.----The Mishimoto skid plate for the 2023+ Nissan Z provides unmatched protection and performance. This skid plate is constructed from 3mm-thick powder-coated aluminum that's built to withstand impacts on the street or the track. Our skid plate attaches to the front fascia and extends all the way back to the subframe covering and protecting your Z's plastic oil pan. A large vent with pre-installed foam shrouding creates a low-pressure zone under the car to help draw heat out of the engine bay and pull fresh air through the cooling stack.----The one-piece construction and slotted rear mounting points make installation of the Mishimoto 2023+ Nissan Z skid plate is a breeze in about 30 minutes. Our skid plate reuses the factory mounting points eliminating the need for any drilling or cutting. Once installed maintenance is made fast and mess-free thanks to the removable service panel. Our service panel is installed with just three bolts and threaded inserts so there's no fumbling around with nuts or spacers for a simple oil change. Like all our 2023+ Nissan Z products this skid plate is backed by our Mishimoto Lifetime Warranty for a lifetime of protection.
Specifications
| WIDTH | 27.6 |
|---|---|
| HEIGHT | 3 |
| LENGTH | 39.7 |
| PROP65 | Y |
| WEIGHT | 13.95 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Material:Aluminum;Color:Black;Configuration:One-Piece;Drilling Required:No;Finish:Powder Coated;Attachment Type:Bolt-On;Mounting Hardware Included:Yes;Universal Or Specific Fit:Specific;Material Thickness:3 MM;Attribute Set Name:ACC/Styling;Install Difficulty:2;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2023+ Nissan Z without cutting or drilling;SellingPoint02:Protects engine bay and plastic oil pan from impacts and debris;SellingPoint03:3mm-thick powder-coated aluminum offers maximum durability;SellingPoint04:Large vent extracts engine bay heat and improves airflow through cooling stack;SellingPoint05:Easy-access service panel makes maintenance fast and mess-free;SellingPoint06:Slotted rear mounting points make installation a one-person job;SellingPoint07:Threaded inserts make service panel install easy;SellingPoint08:One-piece construction improves rigidity and durability;SellingPoint09:Reuses factory mounting hardware to keep installation simple;SellingPoint10:Mishimoto Lifetime Warranty;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:Nissan Z 3.0L V6 2023+;TechSpec Diameter (Inches):N/A;TechSpec Engine Codes:N/A;TechSpec Includes:(1) Aluminum Skid Plate--Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Installation Notes:Torque oil service panel bolts to 50-60in-lbs;TechSpec Length (Inches):N/A;TechSpec Material:Aluminum;TechSpec Maximum Pressure (PSI):N/A;TechSpec Maximum Temperature (F):N/A;TechSpec Minimum Yield Strength:N/A;TechSpec Note:Does not fit Nismo bumpers;TechSpec Overall Height (Inches):N/A;TechSpec Thread Size:N/A;TechSpec Ultimate Tensile Strength:N/A;TechSpec Weight (Ounces):N/A |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Skid Plate |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMSD-Z-23_InstallGuide.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
