Mishimoto MMTC-F2D-03SL Transmission Cooler, Silver, fits Ford 6.0L Powerstroke 2003-2007
$400
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

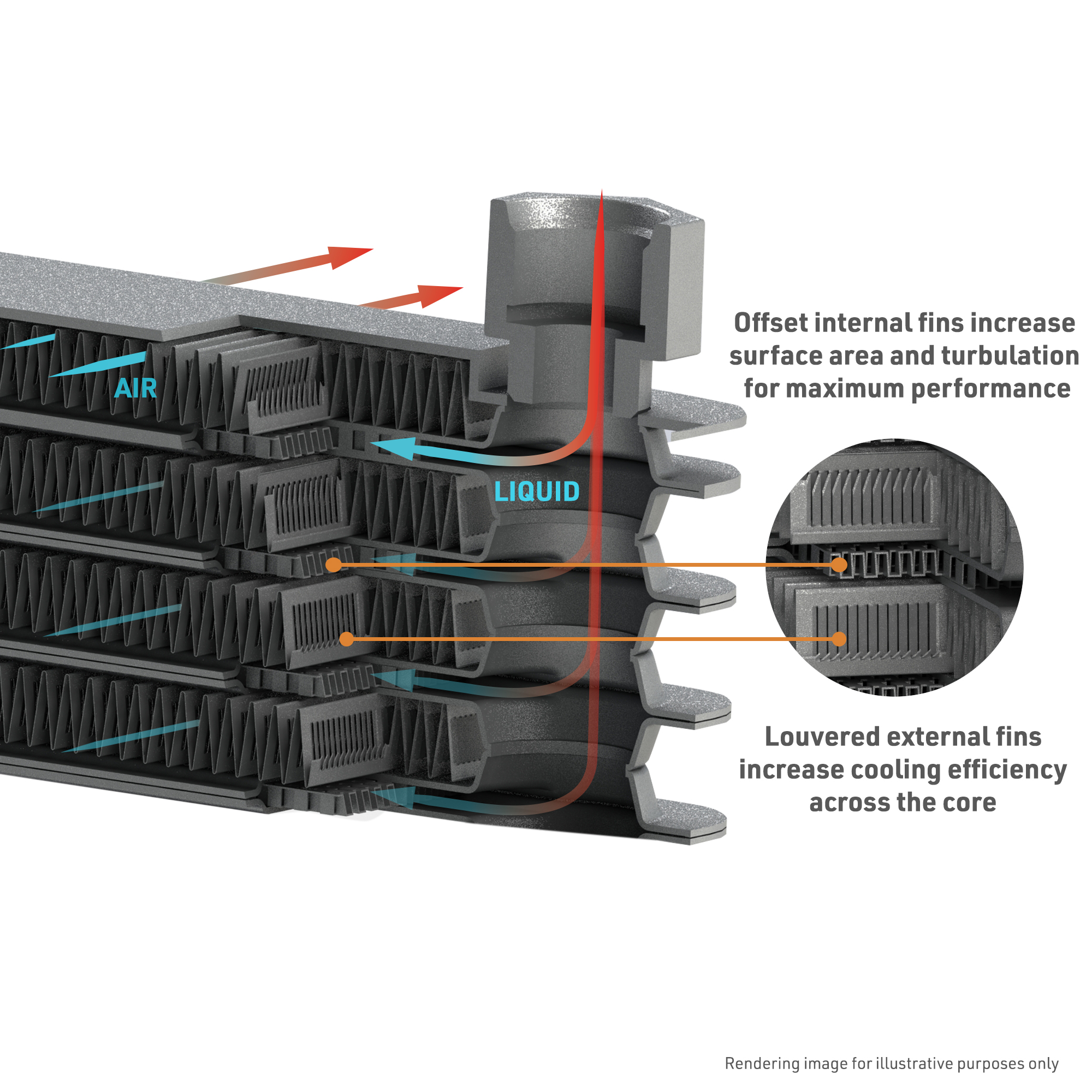

Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto's 6.0 Powerstroke performance parts the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down but as the loads increase so do transmission temps. The 37-row Mishimoto's stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21-percent and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+ F drop in transmission fluid temperature! No modifications are necessary for installation and just like all Mishimoto 6.0 Powerstroke parts this cooler comes with the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 25.2 |
|---|---|
| HEIGHT | 5 |
| LENGTH | 36 |
| PROP65 | Y |
| WEIGHT | 17.76 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Line Included:No;Thickness:1.34 IN;Finish:Natural Aluminum;Width:0 IN;Core Height:16.13 IN;Core Thickness:1.25 IN;Core Width:25.25 IN;Mounting Hardware Included:Yes;Core Material:Aluminum;Height:23.5 IN;Grade Type:Performance;Electric Fan:No;Inlet Diameter:0.5 IN;Outlet Diameter:0.5 IN;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2003-2007 Ford 6.0L Powerstroke;SellingPoint02:Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop;SellingPoint03:No modification necessary for installation functions with all stock equipment;SellingPoint04:37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler;SellingPoint05:Transmisson cooler core has a 21-percent increase in core volume compared to the factory 31-row transmission cooler;SellingPoint06:Increases transmission fluid capacity by 1/3 qt;SellingPoint07:Includes durable SAE J1532 hose designed specifically for use with transmission fluid;SellingPoint08:Mishimoto Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke----Also fits 1999-2003 Ford Superduty trucks with the 7.3 engine however the transmission cooler lines must be changed to ½" OD prior to installation.;TechSpec Caution:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Construction:N/A;TechSpec Core Height (in):16.13;TechSpec Core Length (in):25.25;TechSpec Core Thickness (in):1.25;TechSpec Engine Codes:6.0L Powerstroke;TechSpec Fluid Capacity (qts):N/A;TechSpec Includes:Mishimoto Stacked-Plate Transmission Cooler--Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Note:Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.;TechSpec Outlet:N/A;TechSpec Overall Height (in):23.5;TechSpec Overall Length (in):34;TechSpec Overall Width (in):1.34;TechSpec Rows:37;TechSpec Transmission Codes:5R110--5R110W |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Automatic Transmission Oil Cooler |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
