Mishimoto MMTC-GMP-TBV Thermal Bypass Valve Kit, fits Dodge Charger/Challenger 3.6L 2012-2023
$210
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

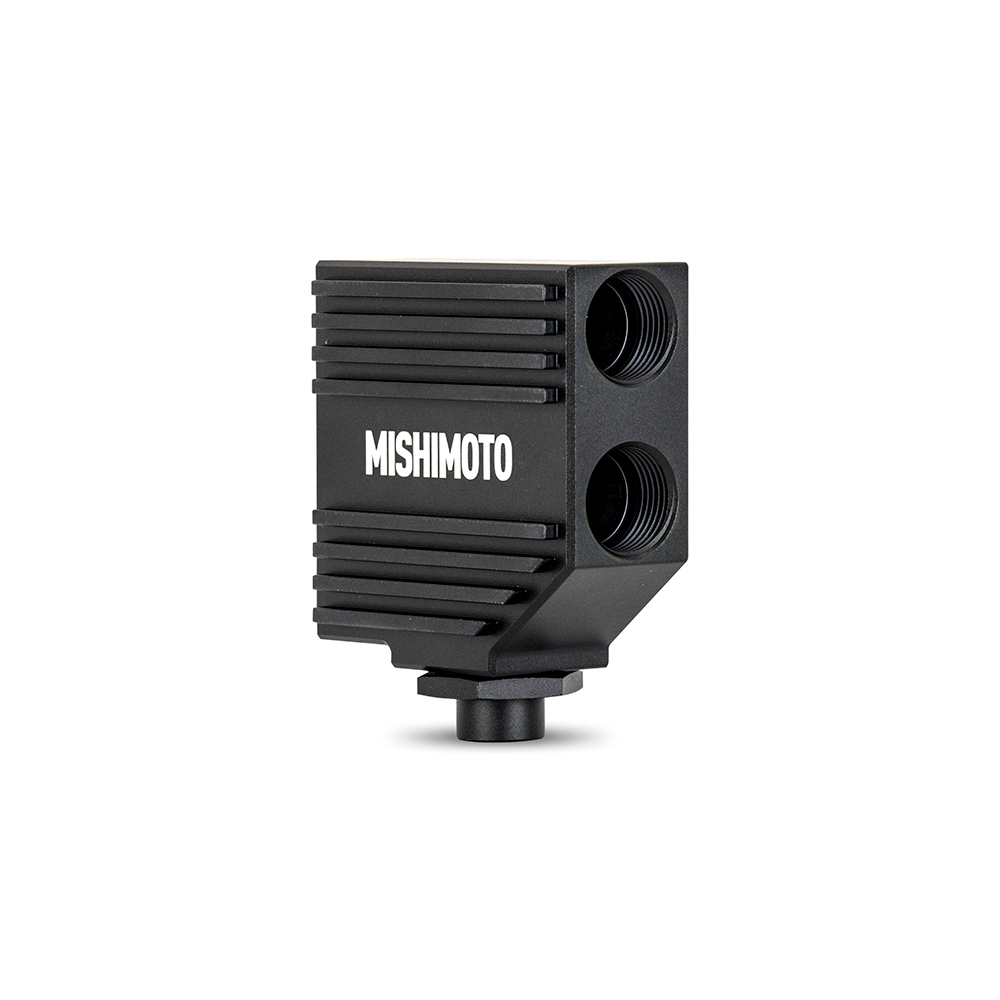

Mishimoto has identified a common failure point in the transmission cooling system of your 2012-2023 Mopar: the thermal bypass valve. This component acts as a thermostat restricting fluid flow to the external transmission cooler based on temperature. Unfortunately many vehicle owners have found these factory units are prone to failure often sticking in the closed position resulting in an overheating transmission. The engineering team at Mishimoto has created a high-quality thermal bypass replacement with numerous additional features to ensure consistent performance and long transmission life. This unit is constructed from durable CNC-machined billet aluminum featuring a heat sink design that provides improved heat dissipation and unique styling. The included thermostat opens at the stock temperature of 160F (71C) but can be customized to suit your needs with any available Mishimoto thermostat. The Mishimoto thermal bypass kit also includes a bypass that can replace the thermostat allowing constant fluid flow to the transmission cooler. The bypass is ideal for vehicles requiring maximum cooling while operating in extreme driving conditions or hot climates. This kit easily installs within one hour and connects directly to all factory cooler piping. This 2012-2023 Charger/Challenger/Chrysler 300 Thermal Bypass Full Flow Valve Kit is built to last a lifetime with a durable black anodized finish and our Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 7 |
|---|---|
| HEIGHT | 2 |
| LENGTH | 8 |
| PROP65 | Y |
| WEIGHT | 1.2 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Line Included:No;Thickness:0 IN;Finish:Natural Aluminum;Width:0 IN;Core Height:0 IN;Core Thickness:0 IN;Core Width:0 IN;Mounting Hardware Included:Yes;Core Material:Aluminum;Height:0 IN;Grade Type:Performance;Electric Fan:No;Inlet Diameter:0.75 IN;Outlet Diameter:0.75 IN;Install Difficulty:2;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 3.6L Dodge Challenger/Charger/Chrysler 300 w/ 8HP transmission;SellingPoint02:Eliminates failure-prone stock bypass valve;SellingPoint03:Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates;SellingPoint04:Improved flow over the stock bypass valve;SellingPoint05:Installs in less than 1 hour;SellingPoint06:Durable CNC-machined billet aluminum construction;SellingPoint07:Helps extend transmission life and prevent overheating;SellingPoint08:Includes 160F thermostat to match stock valve opening temp;SellingPoint09:Fits with stock transmission cooler piping requiring no modification for installation;SellingPoint10:Integrated heat-sink fins provide unique styling and added heat dissipation;SellingPoint11:Durable anodized finish;SellingPoint12:Mishimoto Lifetime Warranty;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:Chrysler 300 3.6L V6 2012-2023--Dodge Challenger 3.6L V6 2015-2023--Dodge Charger 3.6L V6 2012-2023--Ram 1500 TRX V8 (6.2L) 2021-2024---- For vehicles equipped with 8HP45 or 845RE 8 Speed Automatic Transmission;TechSpec Chassis Codes:LD;TechSpec Engine Codes:Pentastar;TechSpec Includes:(1) CNC-Machined Billet Aluminum Thermal Bypass Valve--(1) Removable Thermostat--(1) Removable Thermostat Bypass w/ Installation Hardware--(1) Assembly Notecard--Mishimoto Lifetime Warranty;TechSpec Mishimoto Activation Temperature (F):160;TechSpec Note:This performance thermostatic bypass valve only fits vehicles with 8-speed automatic transmissions--Mishimoto does not recommend customers in cold climates install the thermostat bypass to avoid overcooling of the transmission fluid;TechSpec OEM Activation Temperature (F):160 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Automatic Transmission Oil Cooler |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
