Mishimoto MMTC-RPTR-TBV Transmission Thermal Bypass Valve Kit, fits Ford Raptor 3.5L EcoBoost 2017-2020
$176
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

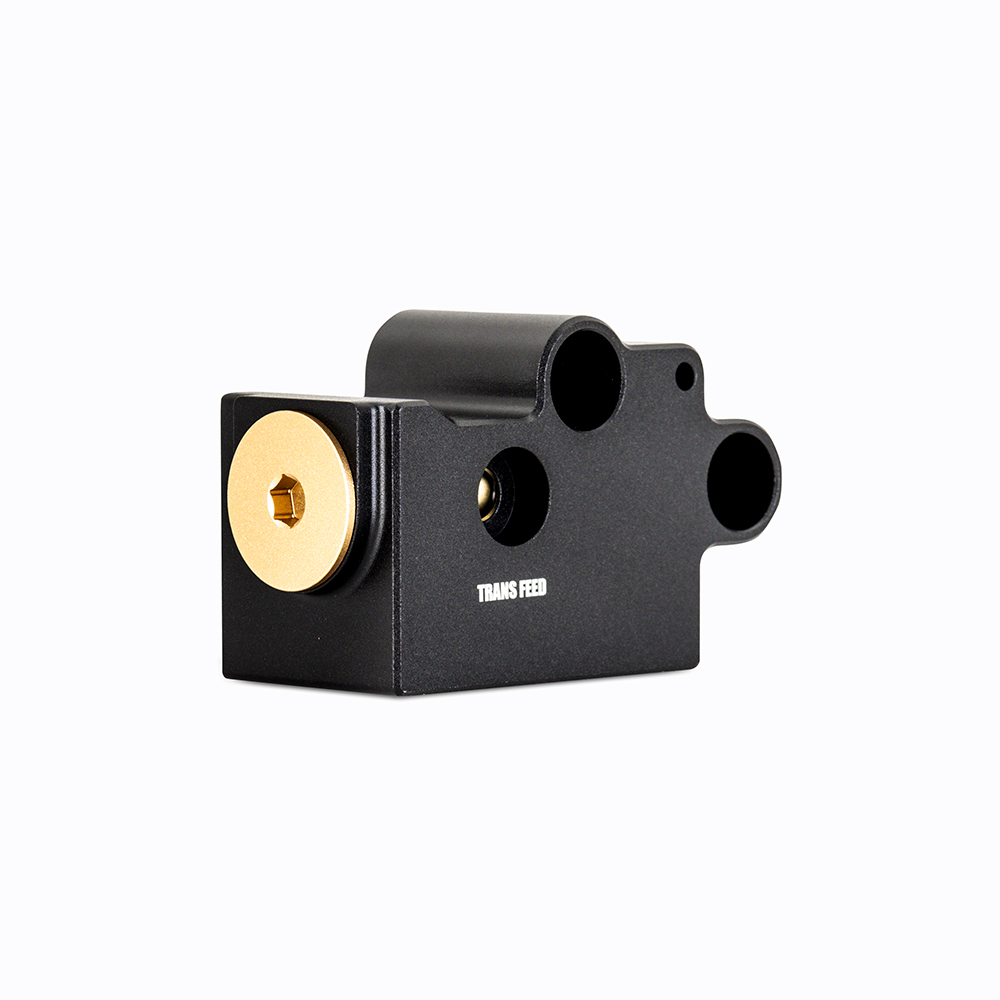

The 10R80 transmission found in your 2017-2020 Raptor 3.5L EcoBoost may be new to the scene but it's proving capable of handling the power of the potent 3.5L. As with any newly developed product however time and mileage tend to reveal any shortcomings. One major weak point of the 10R80 is the factory-equipped thermal bypass valve. This valve controls transmission fluid flow to the external cooler and many reports of failures are beginning to surface. In these cases the factory valve is malfunctioning by restricting or eliminating flow to the external cooler which quickly results in high fluid temps damaged transmissions and an array of warnings on your dashboard. To protect your truck from potential transmission damage the bright minds at Mishimoto have developed a direct-fit thermostatic bypass valve kit for your 2017-2020 Ford Raptor. The Mishimoto thermal bypass valve kit includes an all-aluminum CNC-machined housing that replaces the stock unit. This thermal bypass unit includes a fully serviceable 160F thermostat providing optimal fluid temperatures for all driving conditions. For those in warm climates or vehicles being used in extreme driving/towing conditions this kit also includes a bypass assembly that provides full flow to the transmission cooler regardless of temperature. The Mishimoto thermal bypass valve kit helps extend the life of your 10R80 transmission and effectively eliminates the risk of overheating due to stock bypass valve failure. As with all our products this kit includes the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 6.2 |
|---|---|
| HEIGHT | 3.3 |
| LENGTH | 7.3 |
| PROP65 | Y |
| WEIGHT | 2.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Line Included:No;Thickness:0 IN;Finish:Natural Aluminum;Width:0 IN;Core Height:0 IN;Core Thickness:0 IN;Core Width:0 IN;Mounting Hardware Included:Yes;Core Material:Aluminum;Height:0 IN;Grade Type:Performance;Electric Fan:No;Inlet Diameter:0.5 IN;Outlet Diameter:0.5 IN;Install Difficulty:2;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for Ford Raptor 3.5L EcoBoost 2017-2020;SellingPoint02:Easy install in about 1 hour;SellingPoint03:Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates;SellingPoint04:Durable CNC-machined billet-aluminum design;SellingPoint05:Helps extend transmission life and prevent overheating;SellingPoint06:Increased flow over stock bypass valve;SellingPoint07:Fits with stock transmission cooler piping requiring no modification for installation;SellingPoint08:Machined cooling fins for added heat dissipation;SellingPoint09:Durable anodized finish;SellingPoint10:Mishimoto Lifetime Warranty;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:Ford F-150 3.5L V6 2017-2020;TechSpec Chassis Codes:T3;TechSpec Engine Codes:D35;TechSpec Includes:(1) CNC-Machined Billet Aluminum Thermal Bypass Valve--(1) Removable Thermostat--(1) Removable Thermostat Bypass w/ Installation Hardware--(2) Viton O-Ring 12.36mm ID--(2) Viton O-Ring 15.3mm ID--(1) Assembly Notecard--Mishimoto Lifetime Warranty;TechSpec Mishimoto Activation Temperature (F):160;TechSpec Note:Mishimoto does not recommend customers in cold climates install the thermostat bypass to avoid overcooling of the transmission fluid;TechSpec OEM Activation Temperature (F):N/A |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Automatic Transmission Oil Cooler |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
