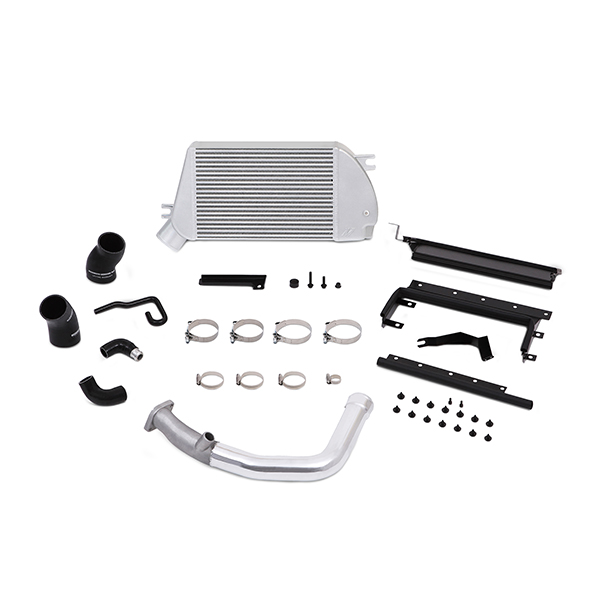

Mishimoto MMTMIC-WRX-15PSL Race Top-Mount Intercooler Kit, Silver/Polished, fits Subaru WRX 2015-2021
$1,206
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Are you looking for a way to reduce high intake temperatures on your stock or modified 2015-2021 Subaru WRX? The solution is the Mishimoto direct-fit 2015-2021 Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015-2021 Subaru WRX. The stock 2015-2021 Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015-2021 Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient dense bar-and-plate core. The Mishimoto 2015-2021 Subaru WRX intercooler has a 4in. thick core and a total volume of 625 cubic inches making it one of the largest top-mount intercoolers you can buy.; Thanks to this volume and a very dense offset fin pitch we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing showing a 35F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple requires no modification to any parts in the engine bay and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose an intercooler to throttle body hose and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation and they ensure years of reliable service.
Specifications
| WIDTH | 21.98 |
|---|---|
| HEIGHT | 21.98 |
| LENGTH | 21.98 |
| PROP65 | Y |
| WEIGHT | 38.48 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | End Tank Material:Aluminum;Pipe Finish:Powder Coated;Hot Side Pipe Inside Diameter:2.5 IN;Cold Side Pipe Inside Diameter:3 IN;Intercooler Type:Air-to-Air;Core Construction:Bar-and-Plate;End Tank Construction:Cast;Core Height:0 IN;Core Thickness:4 IN;Core Material:Aluminum;Universal Or Specific Fit:Specific;Grade Type:Performance;Pipe Material:Aluminum;Pipe Color:Polished;Core Length:0 IN;Inlet Diameter:2.5 IN;Coupler Color:Black;Coupler Material:Silicone;Hose Clamps Included:Yes;Outlet Diameter:3 IN;Maximum Boost Pressure:35 PS;Core Color:Silver;Maximum Horsepower:450 HJ;CARB EO Number:D-759;Install Difficulty:3;OptionLabel:Silver Intercooler Polished Pipe;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2015-2021 Subaru WRX;SellingPoint02:Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune;SellingPoint03:Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune;SellingPoint04:100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core;SellingPoint05:TIG-welded to a highly efficient bar-and-plate core;SellingPoint06:Intercooler core designed for maximum cooling efficiency and minimal pressure drop;SellingPoint07:Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core;SellingPoint08:Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability;SellingPoint09:Includes new BPV hoses hot side coupler and silicone throttle body hose;SellingPoint10:Comes with all necessary hardware clamps and brackets for an easy installation;SellingPoint11:Pre-marked area for NPT sensor;SellingPoint12:Cooler available in durable powder-coated Sleek Silver or Stealth Black finish;SellingPoint13:Mishimoto Lifetime Warranty;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2015-2021 WRX--2014-2018 Forester XT;TechSpec Centerline Radius:N/A;TechSpec Chassis Codes:VA;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):4;TechSpec Core Type:Bar-and-Plate;TechSpec Engine Codes:FA20DIT;TechSpec Includes:(1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.5;TechSpec Installation Notes:22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).----2014-2018 Forester XT vehicles will require modification to the included Mishimoto air duct for install.;TechSpec Maximum Recommended Boost Pressure (PSI):35;TechSpec Maximum Recommended Horsepower:450;TechSpec Note:This kit is rated for 300-450 whp with maximum limits of approximately 500 whp or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size.;TechSpec Outlet (in):3;TechSpec Overall Height (in):10;TechSpec Overall Length (in):24;TechSpec Overall Width (in):5;TechSpec Pipe Diameter:N/A;TechSpec Pipe Length:N/A;TechSpec Pipe Shape:N/A;TechSpec Weight (lbs):24.5 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Intercooler Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
