clutch and drivetrain
Mishimoto MMTP-F2D-11 Aluminum Transmission Pan, fits Ford 6.7L Powerstroke 2011-2019
$467
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

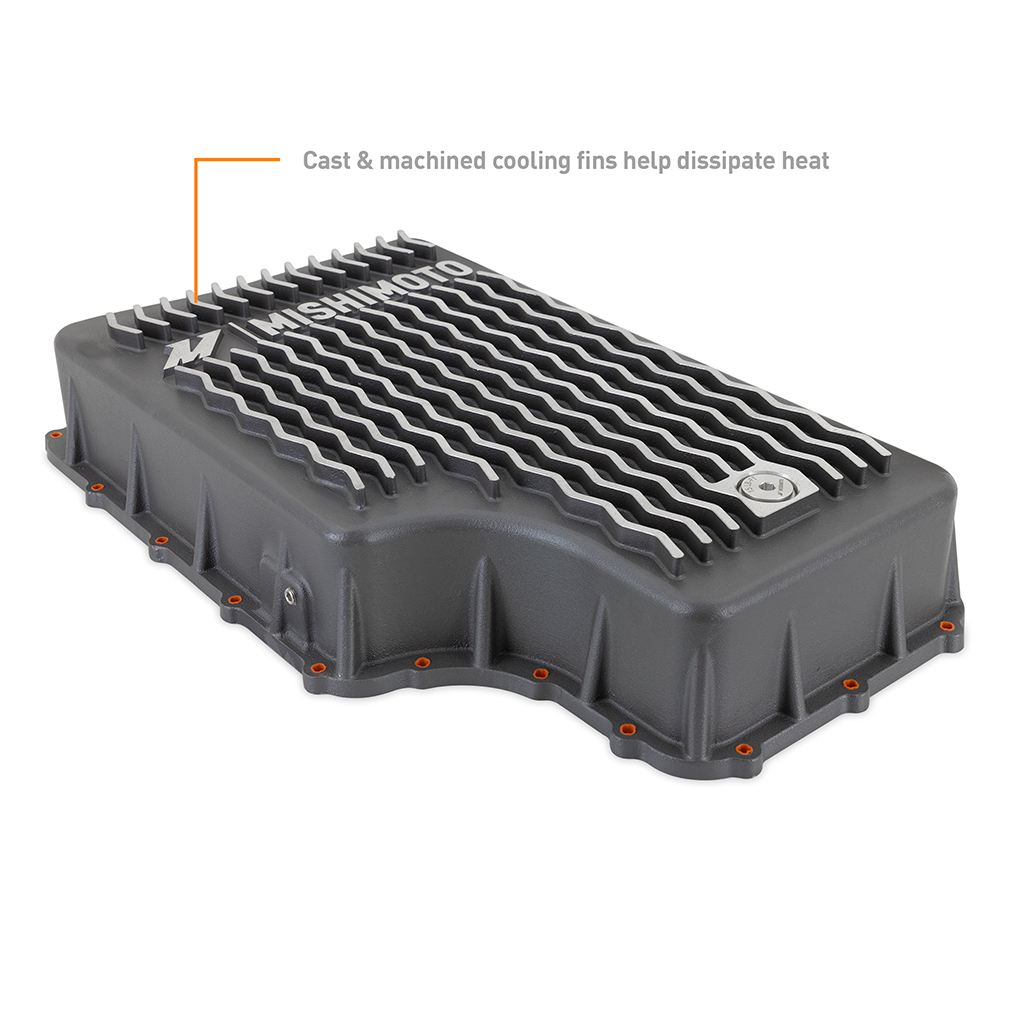

This Mishimoto Aluminum Transmission Pan is a direct-fit high-performance upgrade for your 2011-2019 Ford 6.7L Powerstroke. Cast from high-quality aluminum and powder coated Gunmetal Gray our transmission pan is a robust and long-lasting upgrade for your vehicle's transmission. With a sleek design and bottom ribs this pan not only adds to the overall aesthetic of your truck but also provides improved cooling performance.----This transmission pan features internal baffles that reduce sloshing and enhance heat dissipation resulting in smoother transmission performance. All the headaches that come with a flat gasket and messy sealants are eliminated with our precision-machined dovetail-style groove and O-ring seal. This groove positively retains the O-ring so you never have to worry about it falling out of place during installation. Additionally the Mishimoto 2011-2019 Ford 6.7L Powerstroke Aluminum Transmission Pan adds an extra 5.9 quarts of ATF to help maintain optimal transmission operation.----Fed up with the frustration of trying to hold up a transmission pan with one hand while threading the fasteners in with the other? Mishimoto has you covered with pre-installed bolt retainers that hold the fasteners in the pan allowing you to easily thread the bolts without dropping them on the ground your head or worse that pan of nasty transmission fluid you just drained. Additionally our pan comes equipped with a magnetic drain plug for easy draining and a 1/8-inch NPT port and plug for temperature sensors to make servicing your transmission and monitoring temperatures a breeze.----This direct-fit upgrade offers affordable durability and helps maintain smooth transmission operation ensuring a long life for your transmission. Like all Mishimoto products this transmission pan is backed by the Mishimoto Lifetime Warranty.
Specifications
| WIDTH | 15.5 |
|---|---|
| HEIGHT | 8.18 |
| LENGTH | 23.25 |
| PROP65 | Y |
| WEIGHT | 16.3 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Material:Aluminum;Capacity:5.9 QT;Color:Gray;Configuration:One-Piece;Dipstick Port:No;Drain Plug Included:Yes;Finish:Powder Coated;Mounting Hardware Included:Yes;Grade Type:Performance;Gasket Or Seal Included:Yes;Oil Pan Gaskets Included:Yes;Gasket Configuration:One-Piece;Transmission Filter Included:No;Install Difficulty:1;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2011-2019 Ford Super Duty 6.7L Powerstroke 6R140 Transmission;SellingPoint02:Durable cast-aluminum construction for long-lasting performance;SellingPoint03:Increases fluid capacity by 5.9 quarts over the stock transmission pan for more cooling capacity;SellingPoint04:Bolt retainers hold fasteners in place for easy installation;SellingPoint05:Internal baffles reduce sloshing and enhance heat dissipation for smoother more efficient transmission operation;SellingPoint06:Dovetail-style groove with O-ring seal ensure a fool-proof reliable seal;SellingPoint07:1/8-inch NPT port makes adding a temp sensor fast and easy;SellingPoint08:Magnetic drain plug makes servicing your transmission a breeze;SellingPoint09:Gunmetal gray powder coat finish adds style and function to your truck’s undercarriage;SellingPoint10:Patent Pending;SellingPoint11:Mishimoto Lifetime Warranty;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2011-2019 Ford F-Series 6.2L/6.8L/7.3L Gas and 6.7L Powerstroke 6R140--2011-2019 Ford E-Series 6.8L 6R140;TechSpec Caution:N/A;TechSpec Chassis Codes:N/A;TechSpec Core Construction:N/A;TechSpec Core Height (in):N/A;TechSpec Core Length (in):N/A;TechSpec Core Thickness (in):N/A;TechSpec Engine Codes:N/A;TechSpec Fluid Capacity (qts):5.92 (Pan)/ 15.5 (Total);TechSpec Includes:(1) Cast Aluminum Transmission Pan--(1) Magnetic Drain Plug--(19) Silicone Bolt Retainers--(19) Socket Head Cap Screws w/ Washers--(1) O-Ring Seal--(1) 1/8-in NPT Plug--Mishimoto Lifetime Warranty;TechSpec Inlet:N/A;TechSpec Installation Notes:Drain Plug Torque Spec: 15 lb-ft;TechSpec Note:N/A;TechSpec Outlet:N/A;TechSpec Overall Height (in):N/A;TechSpec Overall Length (in):N/A;TechSpec Overall Width (in):N/A;TechSpec Rows:N/A |
| PCDB CATEGORY | Transmission |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Transmission Oil Pan |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMTP-F2D-11-InstallGuide.pdf |
Datasheet — not yet published
